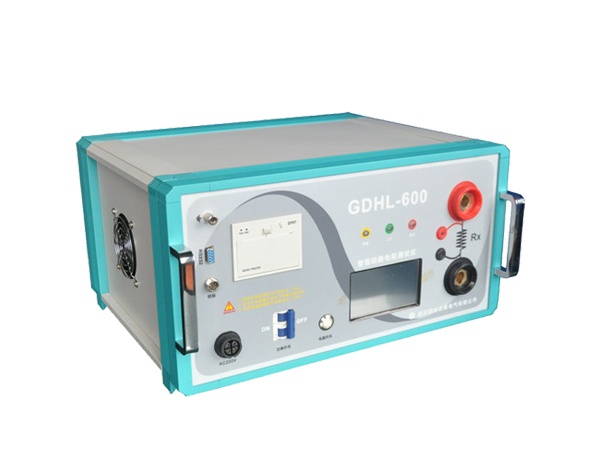

HV HIPOT GDHL-600 Automatic Contact Resistance Tester
ManufacturerHV HIPOT(View more products from this manufacturer)
ModelGDHL-600
OriginChina
Warranty12 months
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
General parameters
Power supply: AC220V±10%; 50±2Hz
Work environment: Temperature -10 ~ +50℃, humidity ≤85%RH (No condensing)
Test conditions: Temperature 15 ~ +35℃, humidity ≤85%RH (No condensing)
Storage conditions: Temperature -20 ~ +70℃, humidity ≤85%RH (No condensing)
Size & weight: 440*220*380mm, ＜30kg (without accessory bag)
Cooling method: Air-cooled
Insulation resistance: To ground ＞20MΩ
Protection class: IP54
Work method: Continuous working/ user-defined working
