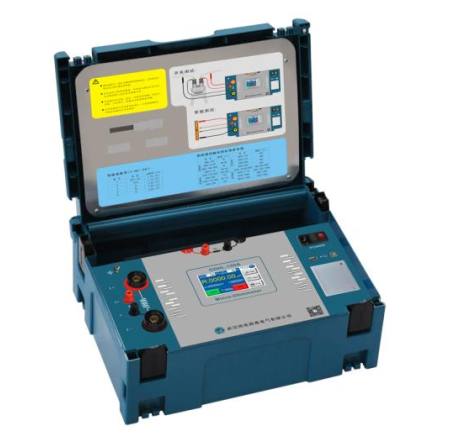

HV HIPOT GDHL-200A Contact Resistance Tester (Micro-Ohmmeter)

Manufacturer: HV HIPOT

Model: GDHL-200A

Specification

Power supply: AC220V±10%, 50Hz

Power consumption: ≤ 500W

Current steps: 50A, 100A, 150A, 200A or customized

Measurement range: 1-10000μΩ

Accuracy: ± (readings*0.5%+0.1uΩ)

Resolution: 0.01uΩ

Digital display of resistance: 5 1/2 digit

Output voltage of constant current source : ≤5V

Measurement time: Can be setting due to different current

Use conditions: -20℃~40℃, ≤80%RH (no condensing)

Weight About : 5kg

Accessories

Main unit: 1 set

Test cable (red, black): 1 set

Power cord: 1pc

Ground cable: 1pc

Built-in standard resistor: 1pc

User’s guide: 1 copy

Warranty card: 1 copy

Packing list : 1 copy

Factory test report: 1 copy
