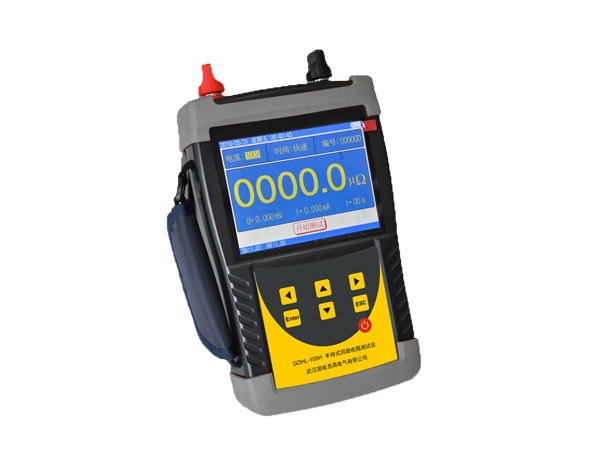

HV HIPOT GDHL-100H Handheld Contact Resistance Tester (0~20mΩ)

Test Current: 30A, 50A, 80A, 100A

Measurement range:

30A: 0~20mΩ

50A: 0~10mΩ

80A: 0~8mΩ

100A: 0~5mΩ

Accuracy: ± (Reading *0.5%+1uΩ)

Resolution: 0.1uΩ

Display digital: 4 1/2 digital

Test power supply: Constant current limit, about 2V

Input voltage: Max. 5V

Test time: Quickly, 10s-60s optional

Battery capacity: 7.5AH power lithium battery

Measurement time: More than 600 times (rechargeable, fast measurement mode)

Test Wire: Resistance less than 10mΩ

Accessories

Tester x 1 set

Tester wire (black and red) x 1 set

Charger x 1 piece

Standard resistor x 1 piece

User’s manual x 1 copy

Factory test report x 1 copy

Packing List x 1 copy
