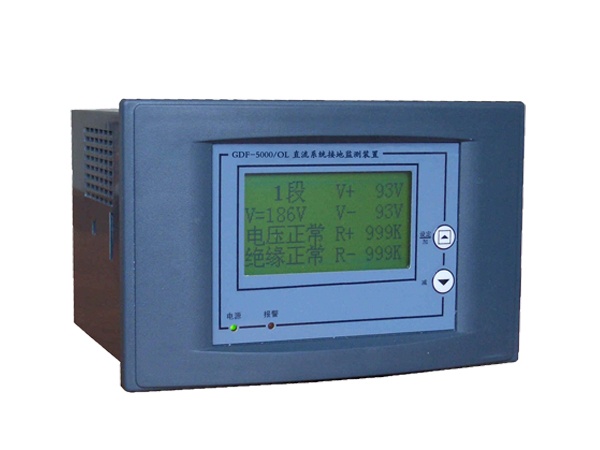

HV HIPOT GDF-5000/OL Online Insulation Monitoring Device for DC System (24, 48, 110, 220 V)

Input voltage grade: (Vin) 24, 48, 110, 220 V

Input voltage range: (Vf) 80%~140%Vin V

Voltage measurement accuracy: Vin=Vf: ±0.5%

Bus resistance range: (Rm) Vin=Vf 0~999 KΩ

Bus resistance accuracy: ±5%

Branch resistance range: (Rz) Vin=Vf: 0.0~100.0 KΩ

Branch resistance accuracy: ±5%

Branch numbers of each segment: (N) 0~64

Rated power consumption: (Po) 3 W

Operating temperature range: (Tj) -10~50 ℃

Alarm contact capacity: (Pf) DC, no sense 220V 0.2A

Datasheet
