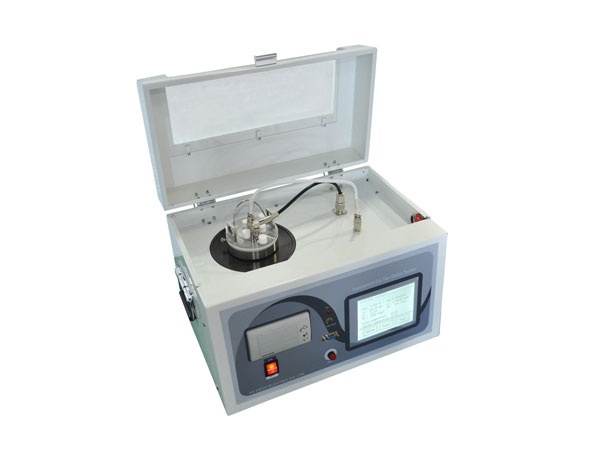

HV HIPOT GD6100 Insulation Oil Tan Delta Tester (1000V-2200V)

Conditions: -5 ℃ -40 ℃; RH <80%

Power Supply: AC 220V ± 10%

High voltage output: 1000V-2200V, every step 200V

Accuracy: 2%

Capacity: 50VA; Output Current is 25mA

Temperature induction furnace: Max. Power 500W

Temperature control range: <100 ℃

Temperature measurement error: ± 0.5 ℃

Temperature control error: ± 1 ℃

Temperature control time: less than 20min, indoor temperature to 90℃

Measure range:

- Tgδ: Unlimited

- Cx: 15pF-300pF

- Rx: 10M-10T

Accuracy:

- tgδ: ±1.0% of the reading + 0.020%

- Cx: ± 1.0% of the reading + 0.5pF

- Rx: 10% of the reading

Relative dielectric constant: εr: automatic calculation

Volume resistivity: ρ: automatic calculation

Dimensions: 450 (L)*310 (W)*360 (H)

Weight: 18kg
