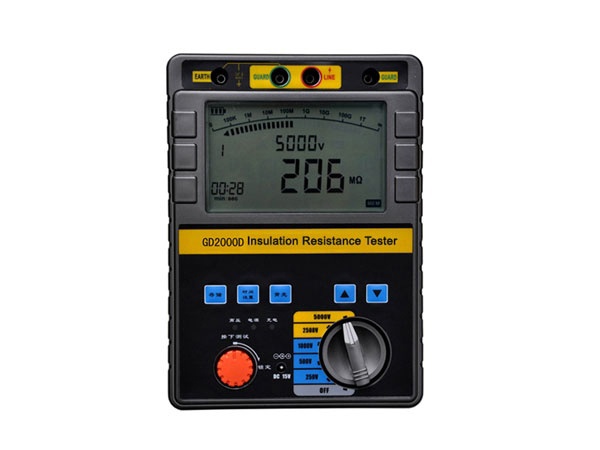

HV HIPOT GD2000D Insulation Resistance Tester (5000V DC)

Output voltage: 250V DC, 500V DC, 1000V DC, 2500V DC, 5000V DC

Accuracy:

- Temperature: 23℃±5℃

- Insulation resistance: 250 - 5G ±5 %; 50 - 10G ±5 %; 1M - 20G ±5 %; 2.5M - 50G ±5 %; 5M - 100G ±5 %; Other range: ±10 %

- Output voltage: 2M - 10G ±5 %; 4M - 20G ±5 %; 8M - 40G 0 -- +10 %; 20 - 100GΩ 0 -- +10 %; 40 - 200G 0 -- +10 %;

Short-circuit current: ≥3.5 mA

Power supply: AA type high capacity rechargeable battery & external adapter

Working Temp.&Humidity: -10℃ -- 40℃, max relative humidity 85 %

Storage Temp.&Humidity: -20℃ -- 60℃, max relative humidity 90 %

Insulation: Max.20000MΩ when voltage between circuit and shell is 1000VDC.

Withstand voltage: Withstand 1min when voltage between circuit and shell is 2500V AC voltage

Dimension: 230mm*190mm*90mm (L*W*H)

Weight: 3kg

Accessories: Test leads, manual, rechargeable adapter, power cable, test report
