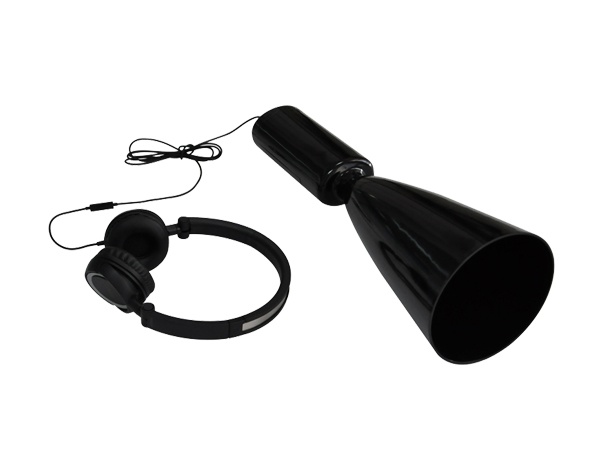

HV HIPOT GD-610C Remote Ultrasonic Partial Discharge Detector (-7dB~60dB)

Software

System: Android 8.0.0

Memory: 4.0GB

Function: data display, chart display

Storage: 64GB

Take Photo: support

Ultrasonic sensor

Measurement range: -7dB~60dB

Resolution: 1dB

Accuracy: ±1dB

Sensitivity: -65dB

Sensor center frequency: 40.0±1.0KHz

Sensor bandwidth: 2.0KHz

Battery

Built-in battery: Lithium battery, 8.4V, 3500mAh

Use time: About 8 hours

Charging time: Approx. 5 hours

Battery protection: Over voltage and over current protection

Battery charger

Rated voltage: 8.4V

Charging output current: 2A

Working temperature: -20℃-60 ℃

Working humidity: <80%

Hardware

Housing: Monochrome molding plastic

Screen: Wireless display (Android phone or tablet)

Control: Start/stop button

Interface: Charger interface; headphone interface;

Headphones: High fidelity noise reduction wired headset; wireless Bluetooth headset

Size:

Instrument size: 380mm * 30mm

Instrument box size: 395mm * 295mm * 105mm

Weight:

Instrument weight: 0.5KG

Instrument with box weight: 2.3KG

The weight of whole set of equipment: 2.7KG

Working environment:

Operating temperature: -20 ℃ ~ 50 ℃

Ambient humidity: 0-90%RH

IP rating: 54
