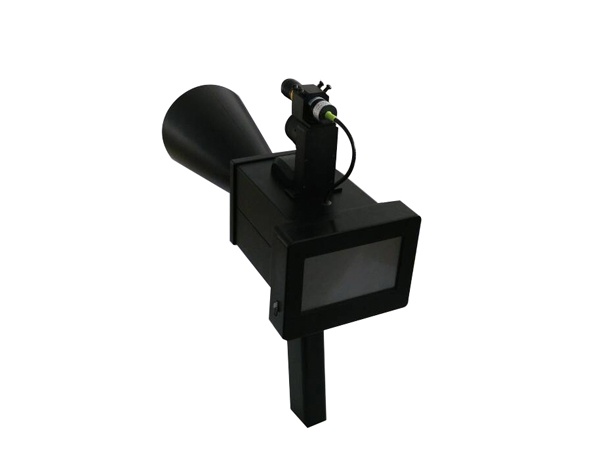

HV HIPOT GD-610A Partial Discharge Inspector (Ultrasonic Detection) (20~150kHz)

System: WINCE6.0

CPU: Main frequency 533MHz

Memory: 256MB DDR2 RAM, 1GB NandFlash

Display: 4.3 inch true color TFT LCD touch screen, resolution 480*272

Port: SD card, USB, serial port, headphone

SD card: TF card (more than 8G)

Camera: 3 megapixels HD camera

Auxiliary configuration: GPS, temperature, humidity, high brightness laser pen

Storage: GPS coordinate, time/date, temperature/humidity

Frequency range: 20~150kHz

Sensor: 40kHz, 1pcs

Use conditions: -25℃ ~ 70℃

Relative humidity: 0 - 95%

Charger: Input: 100-240V， 50/60Hz

Output: voltage 16.8V, current 1A

Power supply: Lithium battery operated.

Working time: about 8 hours.

Battery protection: when there is no operation within 5 minutes, the LCD backlight will be off; when battery power is less than 5%, the system beeps to remind the user to save the data in time.

Please turn off the instrument before charging.
