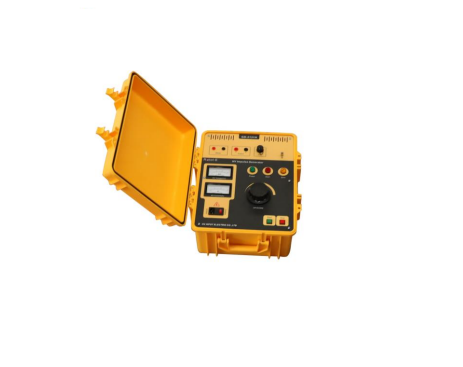

HV HIPOT GD-2131L Impulse Generator (16kV, 63mA)
ManufacturerHV HIPOT(View more products from this manufacturer)
ModelGD-2131L
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Input power supply: AC 220V,50Hz
Output voltage: DC 0-16kV (adjustable)
Rated power: 1kVA
Max. energy: 1024J, 8uF
DC flashover voltage: 16kV
DC flashover current: 63mA
Max. impulse current: 500mA
Discharging method: DC HV, one time, cycle
Cycle discharging time: 3-6 seconds
Environmental temperature:0-40℃
Humidity:<75% RH
Altitude:<1000m
Insulation level: A
Dimension: 430*540*410mm
Weight: about 31kg
