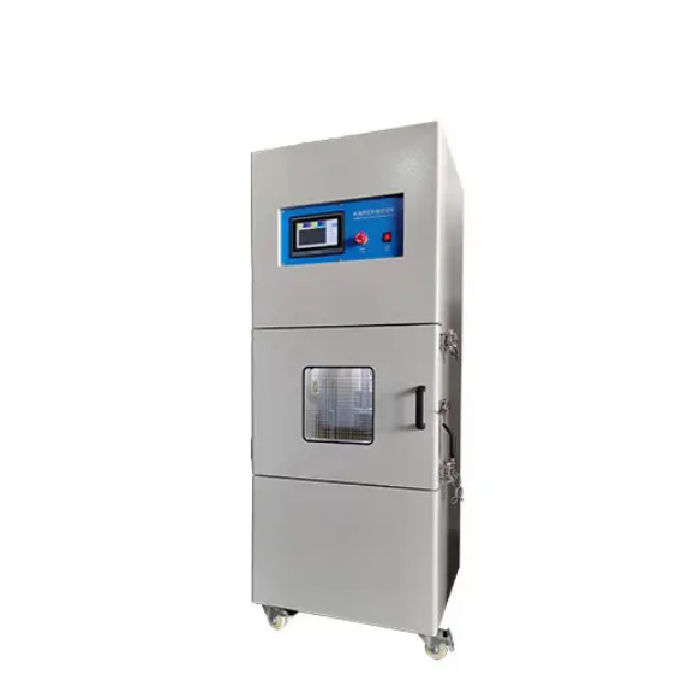

Huda HUD-H212 Battery Crush & Nail Penetration Test Chamber (1～20kN)

Force range: 1～20kN

Extrusion stroke: 250mm

Force value display: touch screen display

Extrusion head: Extrusion head area ≥20cm²

Extrusion degree: Extrusion pressure reaches 13±0.2kN, keep for 1min

Test space: 200x200x200mm (width x depth x height)

External material: A3 steel plate and painted, thickness 1.5mm

Material of inner box: SUS#304, thickness 1.2mm

Steel needle: φ2mm～φ8mm high temperature resistant steel needle, the length is 100mm (can be specified)

Inner box size: 520x450x560mm (width x depth x height)

Dimensions: 800x700x1720mm (width x depth x height, including door lock)

Pressure relief door size: 200x200mm;

Smoke exhaust pipe: diameter φ100mm, located at the back of the box
