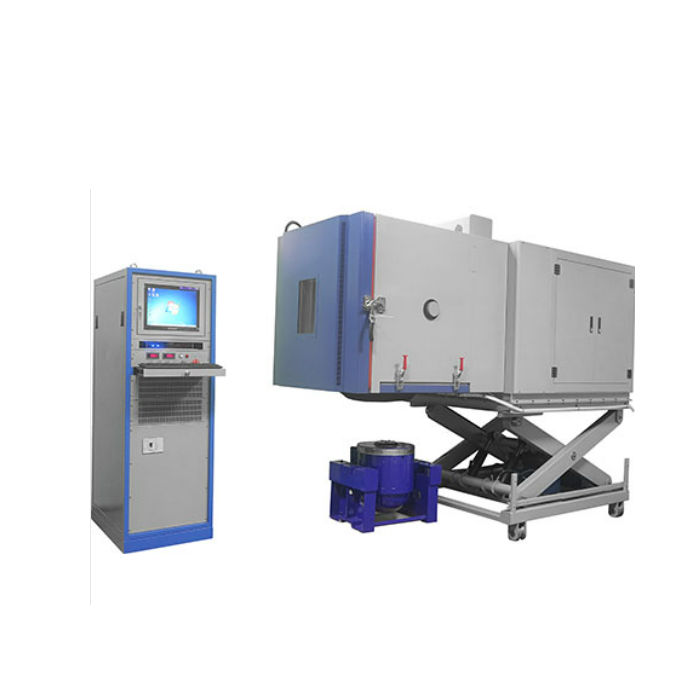

Huda HUD-E809 Temperature Humidity Vibration Test Chamber (-40 ℃~ 150℃)

Temperature & Humidity System

Internal chamber dimension (W*D*H): 1000*1000*1000mm

External chamber dimension(W*D*H): 1200*3000*3800mm approx.

Temperature range: -40 ℃~ 150℃

Temperature fluctuation: ±0.5℃

Temperature uniformity: 2℃

Cooling speed: 5℃/min in average; without loading

Heating speed(temp. Range: -40C~85C): 5℃/min in average; without loading

Humidity range: 10~98%RH

Humidity fluctuation: ±3%RH

Cooling method: Water-cooled

Vibration System

Max. Sine Force: 3200Kg.f peak

Max. Random Force: 3200Kg.f r.ms

Max. Shock Force: 6400Kg.f peak

Frequency Range: 2~3000Hz

Displacement (p-p): 51 mm

Max. Velocity: 2m/s

Power: Three-phase, 380V, 50Hz

Machine dimension: 845mm*790mm*840mm; without expander table
