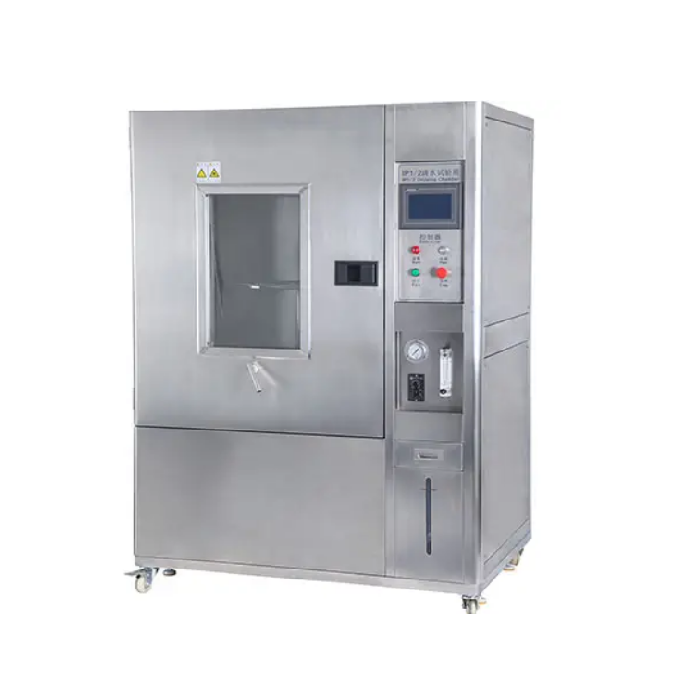

Huda HUD-E710-1 IPX1 & IPX2 Water Drip Test Chamber (IPX1 & IPX2)

Internal dimension (W*D*H): 1000*1000*1000mm

External dimension (W*D*H): 1200*1400*2100mm

Chamber material: Stainless steel #304, Waterproof Toughened glass observation window

Sample turntable: Diameter 500mm

Turntable rotation speed: 1~10r/min, height can be adjusted

Water drop speed: 1 or 3mm/min, can be adjusted

Drip box size: 800*800mm

Distance from drip box to specimen surface: 200mm

Water drop hole diameter: 0.4mm

Distance from water drop hole: 20mm

Test duration: 1~999h999min, adjustable

Turntable angle for IPX2: 15° inclined on either side of the vertical in two mutually perpendicular planes

Safety protection device: Leakage, short circuit, motor over temperature…

Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)
