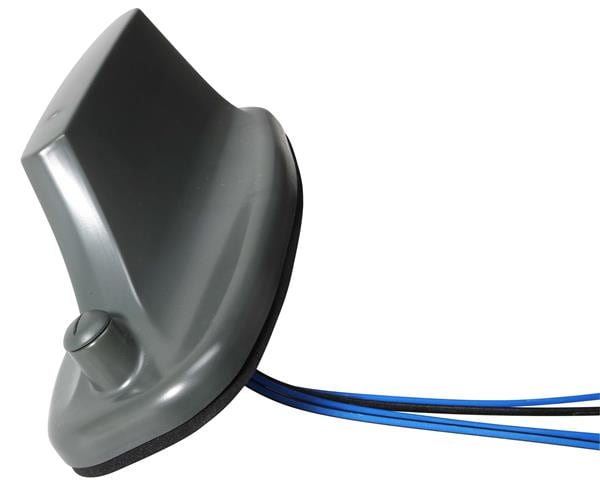

HUBER+SUHNER 1399.99.0127 MIMO Vehicle Rooftop, TETRA, WiFi 2.4, 5 GHz and IEEE 802.11p, GPS/Glonass, Connectors SMA plug (m) / jack (f), SMA jack (f) TNC plug (m) TNC jack (f)

Gain: 4 dBi, 7 dBi, 7 dBi

VSWR: 2, 1.8, 1.8, 2

Style: Sharkfin

Width: 83 mm

Height: 83 mm

Length: 208 mm

IP Rating: IP68, IP69

Impedance: 50 Ohms

Cable Type: 300 mm ENVIROFLEX_316_D x 4

Application: Vehicle Rooftop, Heavy Duty, Bus, Truck

Unit Weight: 412 g

Polarization: Vertical

Power Rating: 10 W

REACH - SVHC: Details

Mounting Style: Direct / Permanent Mount

Electrical Type: Active

Number of Bands: 4 Band

Center Frequency: 420 MHz, 2.545 GHz, 5.4175 GHz, 1.592 GHz

Mechanical Style: Module

Maximum Frequency: 5.935 GHz

Minimum Frequency: 410 MHz

Termination Style: Connector

Antenna Connector Type: SMA Male/Female, SMA Female, TNC Male, TNC Female

Protocol - GPS, GLONASS: GLONASS, GPS

Protocol - WiFi - 802.11: 802.11, WiFi

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: TETRA
