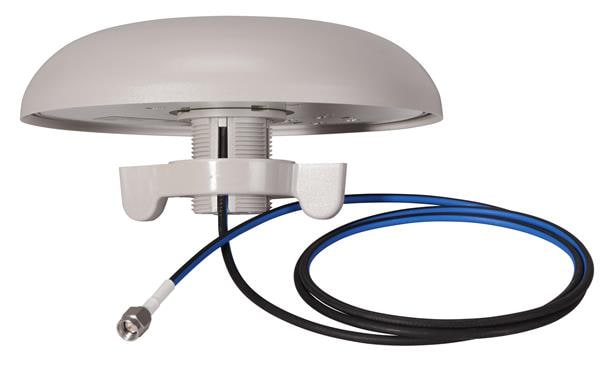

HUBER+SUHNER 1399.19.0224 MIMO Cullular/LTE800, Omni-S, 790-960 / 1710-2600 MHz, 2 / 5 dBi, Robust Outdoor, vert. Polarized; SISO, Pigtail-SMA (m)

Gain: 2 dBi, 2 dBi, 6 dBi, 4 dBi

VSWR: 1.8, 2.5, 1.9, 1.6

Style: Dome

Length: 145 mm

Diameter: 33.2 mm

IP Rating: IP66, IP67

Impedance: 50 Ohms

Cable Type: ENVIROFLEX_316_D

Technology: 4G Cellular

Application: Celluar

Unit Weight: 610 g

Polarization: Vertical

Power Rating: 10 W

Mounting Style: Direct / Permanent Mount

Number of Bands: 4 Band

Center Frequency: 860 MHz, 945 MHz, 1.94 GHz, 2.495 GHz

Mechanical Style: Module

Maximum Frequency: 2.69 GHz

Minimum Frequency: 790 MHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 55 C

Protocol - Cellular, NBIoT, LTE: 4G, Cellular (NBIoT, LTE)
