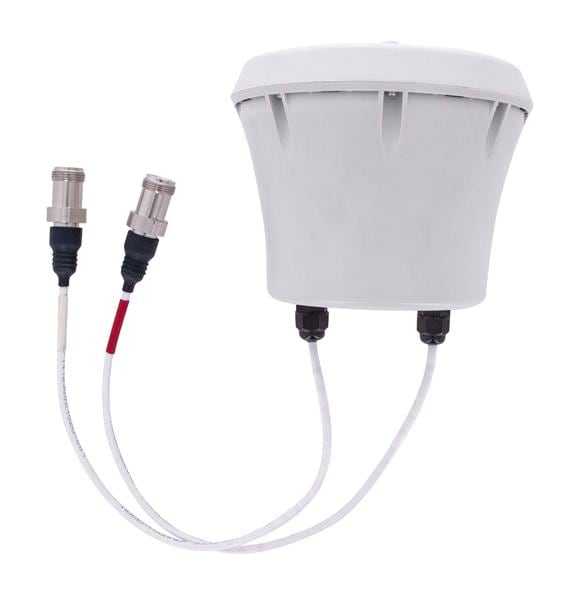

HUBER+SUHNER 1399.17.0255 MIMO Directional Antenna 4G 5G MIMO 2x2

Gain: 4 dBi, 7 dBi, 7.5 dBi

VSWR: 2, 2, 2

Style: Dome

Length: 117 mm

Diameter: 96 mm

IP Rating: IP66

Impedance: 50 Ohms

Cable Type: SUCOFORM_122_LA_CU_CMP x 2

Application: WiFi

Unit Weight: 280 g

Cable Length: 350 mm

REACH - SVHC: Details

Mounting Style: Direct / Permanent Mount

Number of Bands: 3 Band

Center Frequency: 2.595 GHz, 3.55 GHz, 4 GHz

Mechanical Style: Module

Maximum Frequency: 4.2 GHz

Minimum Frequency: 2.5 GHz

Termination Style: Connector

Antenna Connector Type: N Male

Protocol - WiFi - 802.11: WiFi

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 40 C
