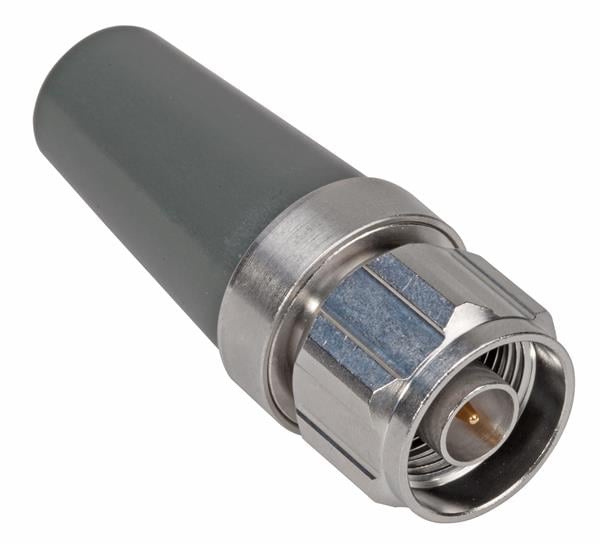

HUBER+SUHNER 1399.17.0224 Passive Antenna WiFi / LTE Omni-directional, Broad-band 1.7 to 6 GHz, 2 dBi, Robust In- + Outdoor Stub; vert. polarized, Conn. N (m)

Gain: 1.5 dBi, 2 dBi, 1.5 dBi, 2.5 dBi, 2.5 dBi, 3 dBi

VSWR: 2, 2, 2, 2, 2, 2

Style: Stubby

Length: 55 mm

Diameter: 22 mm

IP Rating: IP66, IP68, IP69K

Impedance: 50 Ohms

Technology: WiFi

Application: Multiband

Unit Weight: 48.120 g

Polarization: Vertical

Power Rating: 10 W

REACH - SVHC: Details

Mounting Style: Panel Mount

Number of Bands: 6 Band

Center Frequency: 1.855 GHz, 2.35 GHz, 3.45 GHz, 5.025 GHz, 5.5375 GHz

Mechanical Style: Whip

Maximum Frequency: 7.125 GHz

Minimum Frequency: 1.71 GHz

Termination Style: Connector

Antenna Connector Type: N Male

Protocol - WiFi - 802.11: WiFi 4, WiFi 5, WiFi 6, WiFi 6E

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE)
