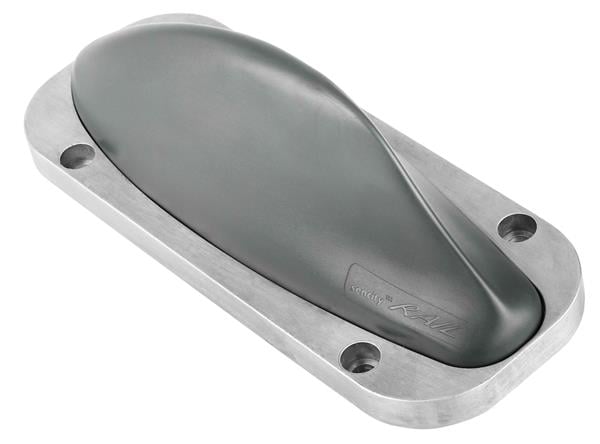

HUBER+SUHNER 1399.17.0122 Passive Antenna Railway Rooftop, 2G/3G/4G cellular and WiFi 2.4/5 GHz bands, 8.5dBi, vertical polarized; Connector N, jack (f)

Gain: 5 dBi, 5 dBi, 6 dBi, 6 dBi, 8.5 dBi, 7 dBi, 7.5 dBi

VSWR: 2, 1.5, 2.2, 1.5, 1.5, 1.7, 1.5

Style: Sharkfin

Width: 100 mm

Height: 90 mm

Length: 256 mm

IP Rating: IP68

Impedance: 50 Ohms

Application: Rail, Railway Rooftop

Unit Weight: 1.065 kg

Polarization: Vertical

Power Rating: 100 W

REACH - SVHC: Details

Mounting Style: Screw Mount

Number of Bands: 7 Band

Center Frequency: 742 MHz, 1610 MHz, 1350 MHz, 2205 MHz, 3000 MHz, 4100 MHz, 5662.5 MHz

Mechanical Style: Module

Maximum Frequency: 6.425 GHz

Minimum Frequency: 694 MHz

Termination Style: Connector

Antenna Connector Type: N Female

Protocol - WiFi - 802.11: WiFi

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 45 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G/5G, Cellular (NBIoT, LTE)
