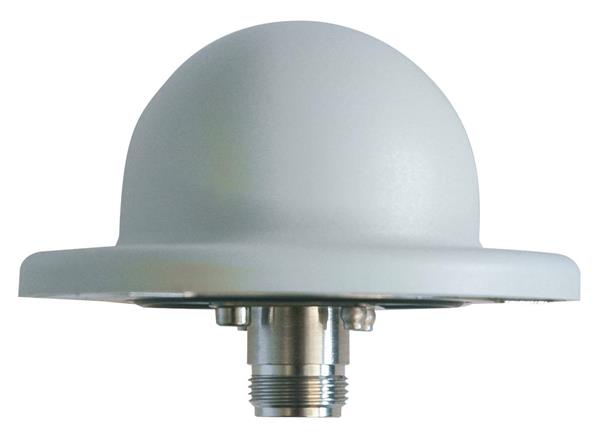

HUBER+SUHNER 1399.17.0106 Passive Antenna Railway In-Carriage, WiFi Dual-band Omni-S, 2.4 / 5 GHz, 6 / 8 dBi, Indoor, vertical polarized, Connector N (f)

Gain: 6 dBi, 6 dBi, 6 dBi, 8 dBi, 8 dBi

VSWR: 1.8, 2, 2, 1.8, 1.9

Style: Dome

Length: 43 mm

Diameter: 86 mm

IP Rating: IP65

Impedance: 50 Ohms

Application: WiFi

Unit Weight: 157 g

Power Rating: 300 W

REACH - SVHC: Details

Mounting Style: Direct / Permanent Mount

Number of Bands: 5 Band

Center Frequency: 2.45 GHz, 2.6 GHz, 3.6 GHz, 5.4125 GHz, 6.525 GHz

Mechanical Style: Module

Maximum Frequency: 7.125 GHz

Minimum Frequency: 2.4 GHz

Termination Style: Connector

Antenna Connector Type: N Female

Protocol - WiFi - 802.11: WiFi 6E

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 40 C
