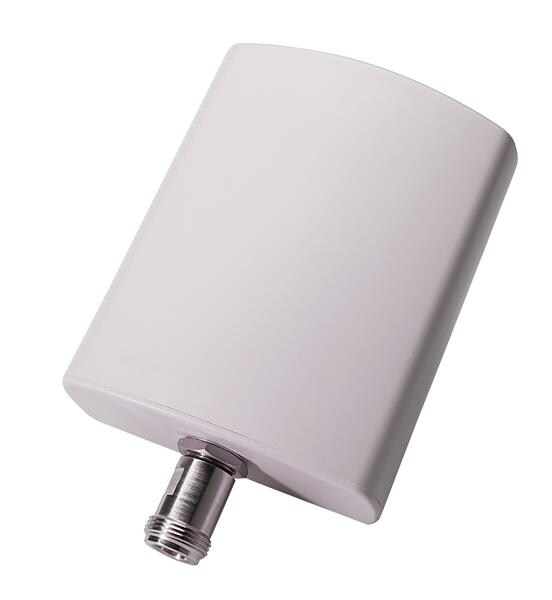

HUBER+SUHNER 1351.17.0001 Passive Antenna WiFi Directional 4.9 GHz, 13.5 dBi, Spot-S Robust Outdoor, linear vertical polarized, WLAN; Connector N (f)

Gain: 13 dBi, 13.5 dBi

VSWR: 1.5, 1.5

Style: Square

Width: 81 mm

Height: 36 mm

Length: 101 mm

IP Rating: IP66, IP67

Impedance: 50 Ohms

Application: WiFi

Unit Weight: 200 g

Polarization: Vertical

Power Rating: 10 W

REACH - SVHC: Details

Mounting Style: Bracket Mount

Number of Bands: 2 Band

Center Frequency: 4.92 GHz, 5.145 GHz

Mechanical Style: Module

Maximum Frequency: 5.35 GHz

Minimum Frequency: 4.9 GHz

Termination Style: Connector

Antenna Connector Type: N Female

Protocol - WiFi - 802.11: 802.11 a/h, WiFi, WLAN

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
