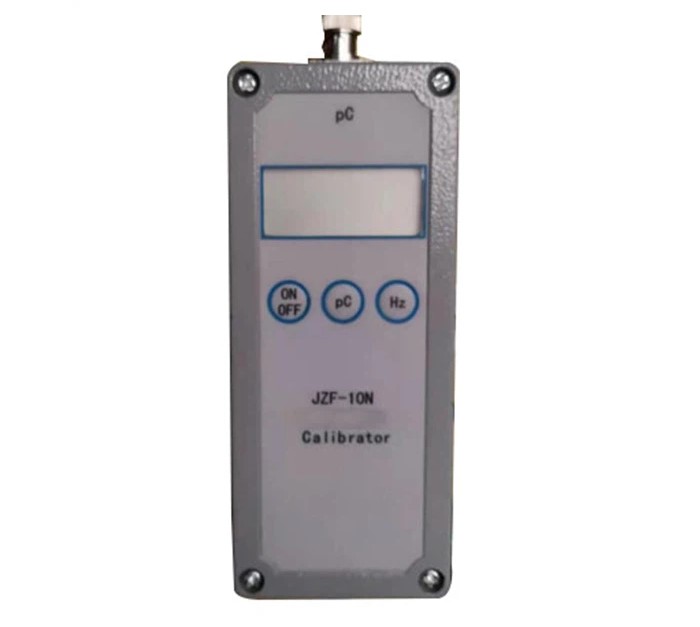

Huazheng JZF-10N Partial Discharge Corrector Calibration Pulse Generator (500pC)

Output charge range: 5pC, 10pC, 20pC, 50pC, 100pC , 200pC, 500pC;

Polarity: positive and negative alternately;

Repetition frequency: 50, 100, 200, 500, 1200Hz;

Frequency accuracy: <1%;

Pulse rising edge time: <60nS;

Pulse falling edge time: >100uS;

Injection capacitance: 10pF;

Correction charge error: Eq≤±10%;

Size: 150mm (length) × 65mm (width) × 35mm (height);

Weight: 0.5kg;

Charging adapter: 220VAC input, 9VDC output;

Built -in rechargeable lithium battery.

In the case of no operation, the power will be automatically cut off in 3 minutes.
