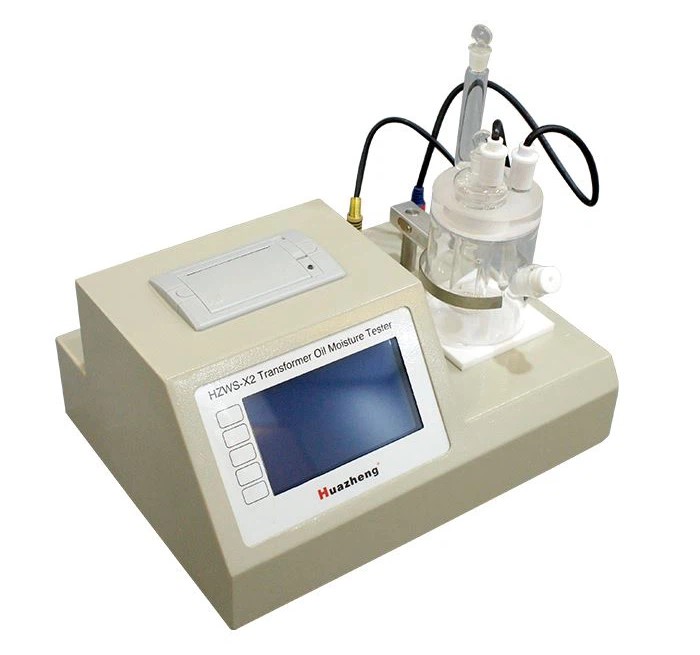

Huazheng HZWS-X2 Transformer Oil Moisture Tester (40 ug/s, 400mA)

Current at the generator electrode: 100, 200, 400 mA

Titration speed max： 40 ug/s

Determination range 0 to200 mg

Resolution 0.1 ug

Reproducibility Sample: Reagent manufacturer's standard.

With 10 ug...1000 ug: ±2ug

With >1000 ug : 0.2% or better

Drift compensation automatic

Display Graphical LCD, 240 x 128 dots, LED back-lit

Printer Built-in thermal printer, Paper width 57 mm

Memory Data storage 500 results

Stirrer control coordinated with the titration process

RS232 interface computer connection

Nom. operation range 5 ... 40 °C

Storage – 20 ... 60 °C

Transport – 40 ... 60 °C

Voltage 110...230V

Frequency 50 ... 60 Hz

Power consumption max. 30 W

Material of housing Steel

Material of display Glass (LCD)

Width 320 mm

Height 240 mm

Depth 150 mm

Weight 5 kg
