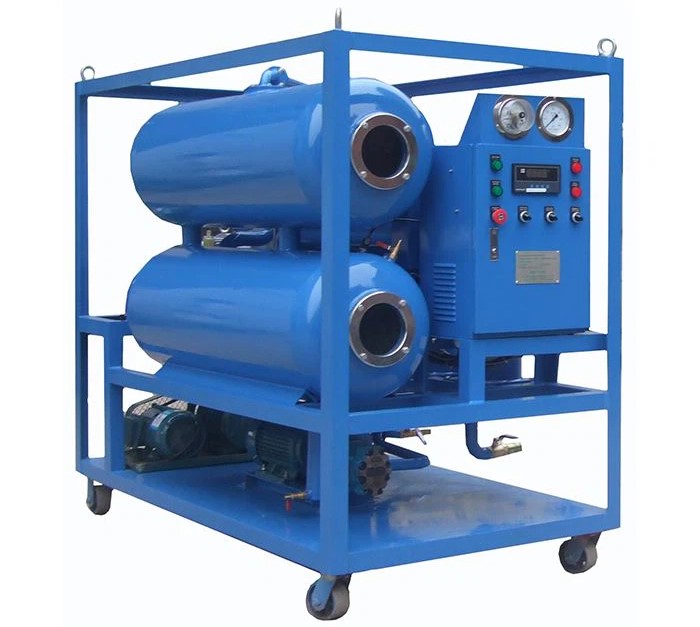

Huazheng HZTY-125 Vacuum Steam Turbine Oil Purifier Machine (Mpa: -0.070～-0.099, 7500l/h)

Processing capacity: L/H: 7500

Working vacuum: Mpa: -0.070～-0.099

Working pressure: Mpa: ≤0.5

Water content: PPM: ≤20

Demulsification degree: Min: ≤15

Cleanliness: NAS: 6

Filtering precision: µm: ≤1

Continuous working time: H: ≥200

Fault free working time: H: ≥6000

Operating temperature: ℃: 40～70

Power Supply: ～50HZ 380V (according to user requirements)

Working noise: dB: 65

Heating power: KW: 72

Total power: KW: 78

Oil inlet pipe diameter:

Oil inlet mm: 48

Oil outlet mm: 48

Weight: kg: 800

Dimension

Length mm: 1700

Width mm: 1200

Height mm: 1820
