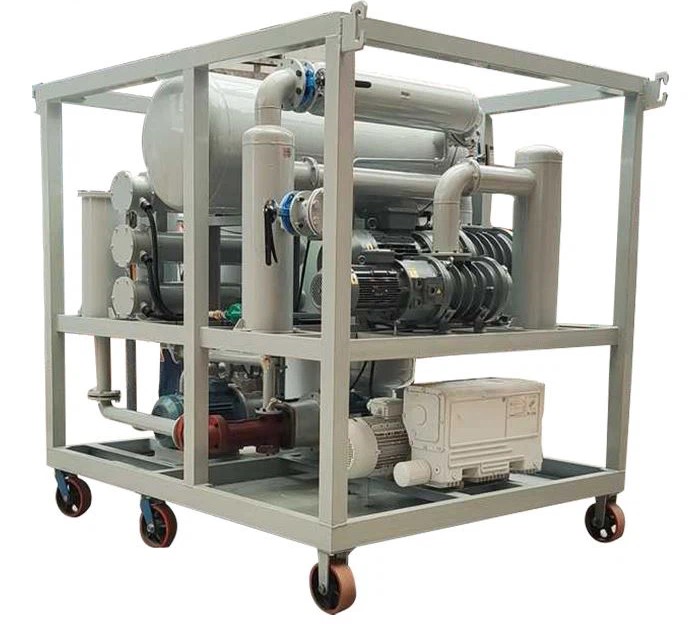

Huazheng HZLY-300A Double Stage Vacuum Oil Purification (18000L/h)

Product technical parameters

Nominal flow: 18000L/h

Net oil capacity: 300L/min

Pumping rate: 2160M³/h

Working pressure: ≤0.4Mpa

Working oil temperature: 40～70℃

Power supply: 50Hz380V three-phase three-wire

Heating power: 192Kw (adjustable)

Total power rate: 209kw

Operating noise: ≤75dB(A)

Inlet/outlet pipe diameter: DN65

Dimensions: 245×195×225cm

Equipment weight: 2850Kg

Product net oil index (new oil)

Oil to be processed

Breakdown voltage: >30kV (spherical pole);

Water content: ≤50ppm;

Air content: ≤10% (volume ratio);

After multiple processes

Breakdown voltage: >75kV (spherical pole);

Water content: ≤5ppm;

Air content: ≤0.1% (volume ratio);

Acetylene content: 0

Filter accuracy 1μm
