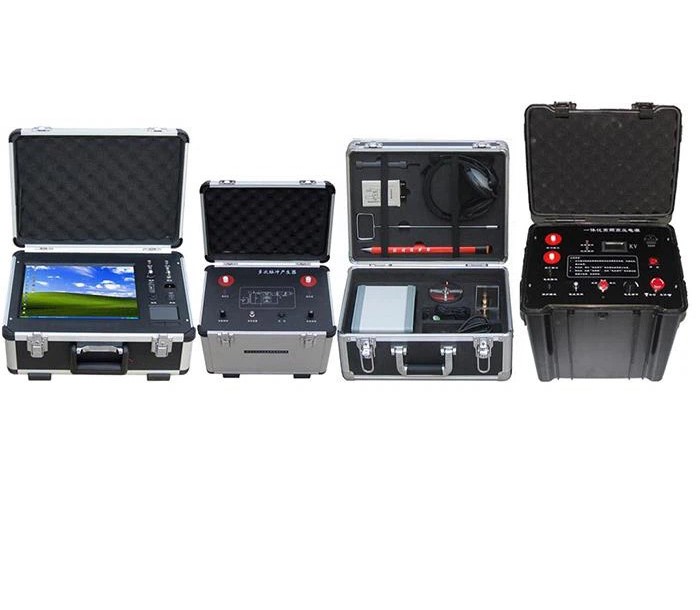

Huazheng HZL-300 Full Intelligent Multiple Pulse Cable Fault Location Equipment

Working mode: low voltage pulse, pulse current, multiple pulses.

Precise locating error: ±0.2m.

Sampling frequency: 100MHz, 50MHz, 25MHz, 12.5MHz, 6.25MHz, real-time sampling.

Maximum working distance: 60km.

Test blind zone: 5m.

Communication interface: USB.

Power supply: AC 220V±10%, not more than 15W; DC 12V (7AH), not more than 20W.

Battery power supply time: With a fully charged polymer lithium- ion battery, it canworkcontinuously for more than 6 hours (as the battery ages, the continuous use time will beshortened accordingly).

Volume: 180mm×300mm×400mm

Weight: 6.2kg

Working temperature: -20～+40℃

Relative humidity: 25℃ (20～80)%RH

Atmospheric pressure: 86～106kPa
