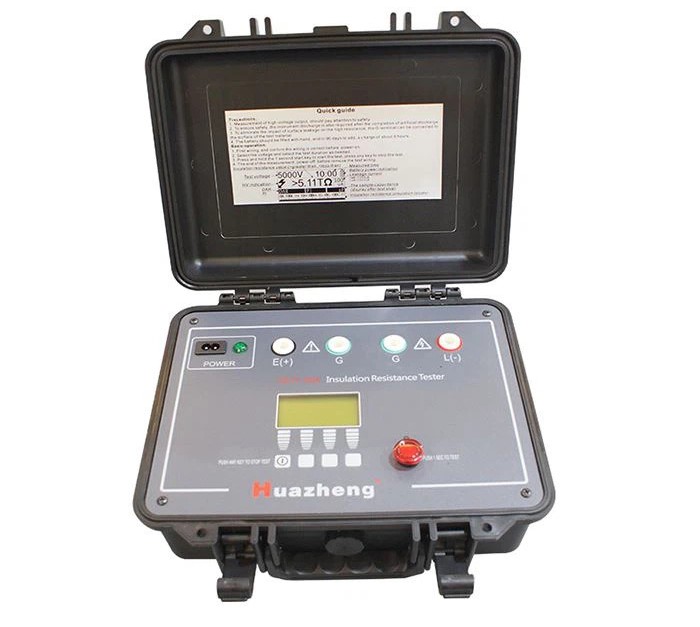

Huazheng HZJY-25K Insulation Resistance Tester

Safety specifications

IEC 61010-1 CAT.IV 600V Pollution degree 2

IEC 61326 EMC specification: electrical equipment for testing, control and inspection

IEC60529 IP64 (outer box closed state)

AC power supply: 220V±10%, 50/60 HZ, 25 VA

Battery power supply: 16.8V lithium ion battery

Battery life time: 25000V@no-load, about 4 hours

Dimensions (length x width x height): 37cm x 27cm x 17cm

Weight: 3.5kg

Test voltage accuracy: 100% to 110% of the nominal value

Voltage measurement accuracy: 5%+10V

Current test range: 10mA

Current measurement accuracy: 5%+0.2nA

Short-circuit current: 2 to 7mA, adjustable output (10mA short-circuit current can becustomized)

Capacitance test range: 20uF

Capacitance test accuracy: 15%+0.03uF

Insulation resistance test range and accuracy (temperature: 23±5ºC, relative temperature: 45-75%RH)
