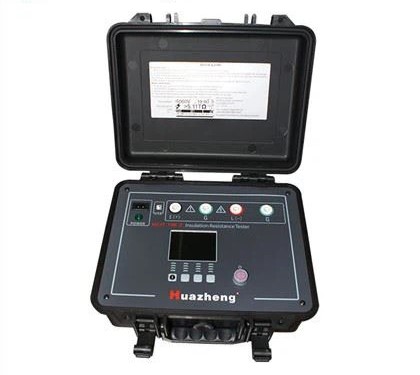

Huazheng HZJY-10K-Z Insulation Resistance Tester

Safety specifications

IEC 61010-1 cat.iv 600V pollution degree 2

IEC 61326 EMC specification: electrical equipment for testing, control and inspection

IEC60529 IP64 (closed state of outer box)

AC power supply: 120V ± 10%, 50 / 60 Hz, 20 VA

Battery power supply: 16.8v lithium ion battery

Battery life: 5000V@100M , about 6 hours

Dimensions (L x W x H): 32cm x 27cm x 14cm

Weight: 3.8kg

Output voltage accuracy: 100% to 110% of nominal value

Output voltage monitoring accuracy: ± 5% ± 10V

Voltage measurement range: AC: 30-600v (50Hz / 60Hz), DC: 30-600v

Voltage measurement accuracy: ± 2% ± 3dgt

Current test range: 10mA

Current measurement accuracy: 5% + 0.2na

Short circuit current: 2 to 5mA, adjustable output

Capacitance test range: 25uf

Capacitance test accuracy: ± 10% ± 0.03uf

Discharge rate of capacitor test object: from 5000v to 10V, 1s / µ F

Protection: 2% error, shielding 500K Ω leakage resistance under 100m Ω load

Analog display range: 100k Ω to 10t Ω

Digital display range: 10K Ω to 20t Ω

Insulation alarm: 0.01M Ω to 9999.99m Ω

Insulation resistance test range and accuracy (temperature: 23 ± 5 º C, relative temperature: 45 – 75% RH)
