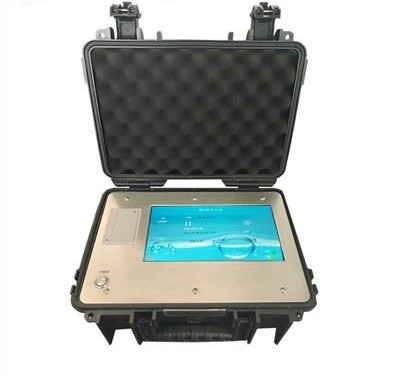

Huazheng HZJS-1 Lubricant Oil Particle Count Analysis Equipment (5-60mL/min)

Light source: semiconductor laser

Offline detection speed: 5-60mL/min

Offline detection of sample viscosity: ≤100cSt (optional pressure chamber when viscosity is high)

On-line detection pressure: 0.1-0.6Mpa (the maximum pressure of the optional decompression device can reach 42Mpa)

Particle size range: 0.8-600μm

Data storage: Provide 1000 groups of data storage space, and support U disk storage

Sensitivity: 0.8μm or 4μm (c)

Limited coincidence error: 40000 grains/ml

Counting volume: 1-999ml

Counting accuracy: the error is less than ±10%

Test interval: 1 second - 24 hours

Test sample temperature: 0-80℃

Water activity reference value: 0-1aw (±0.05aw)

Water content: 0-360ppm (±10%)
