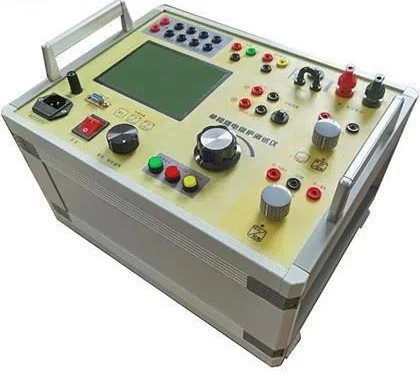

Huazheng HZJB-Y Single Phase Relay Protection Tester (100A, 250VAC, 300VDC)

Rated input power: AC: 220V±10%·1000VA·50Hz

AC Output

Range(A): 0~10

No-load Voltage (Minimum)V: 90

Full-load Voltage (Minimum)V: 80

Full-load Current (Maximum)A: 10

Range(A): 0~40

No-load Voltage (Minimum)V: 25

Full-load Voltage (Minimum)V: 22

Full-load Current (Maximum)A: 40

Range(A): 0~100

No-load Voltage (Minimum)V: 10

Full-load Voltage (Minimum)V: ＜8

Full-load Current (Maximum)A: 150

Range(V): 0~250(AC)

No-load Voltage (Minimum)V: 250

Full-load Voltage (Minimum)V: 240

Full-load Current (Maximum)A: 3

Range(V): 0~300(DC)

No-load Voltage (Minimum)V: 320

Full-load Voltage (Minimum)V: 250

Full-load Current (Maximum)A: 3

DC auxiliary Output

Range V: 0~110

Voltage V: 120

Maximum current A: 0.5

Range V: 110~220

Voltage V: 220

Maximum current A: 0.5

AC Auxiliary output

Range: 0～120V

Voltage V: 120

Max current A: 0.4

Range: 0～8A

Voltage V: 5

Max current A: 8

Stopwatch

Range：0.0000～999999S, Resolution：0.1mS, precision：±5 characters

With contact and potential input, maximum input voltage: DC 250V

Ammeter

Range：Internal：0.000～150.0A（AC or DC）

External：0.000～6.000A（AC or DC）

precision：0.5%

Measurement method：AC：True RMS DC：Average value

Voltmeter

Range：0.0～600.0V（AC or DC） precision：0.5%

Measurement method：AC：True RMS DC：Average value

Resistors and capacitors

Resistance：0.5Ω～2.5kΩ, Capacitor：10uF，maximum voltage AC 450V

Split/close auxiliary contacts

Maximum current：1A, Maximum voltage：AC250V or DC120V

Use environment: temperature-10～40℃, relative humidity less than 80%

Volume:360 mm×270 mm×250 mm

Weight: 18kg
