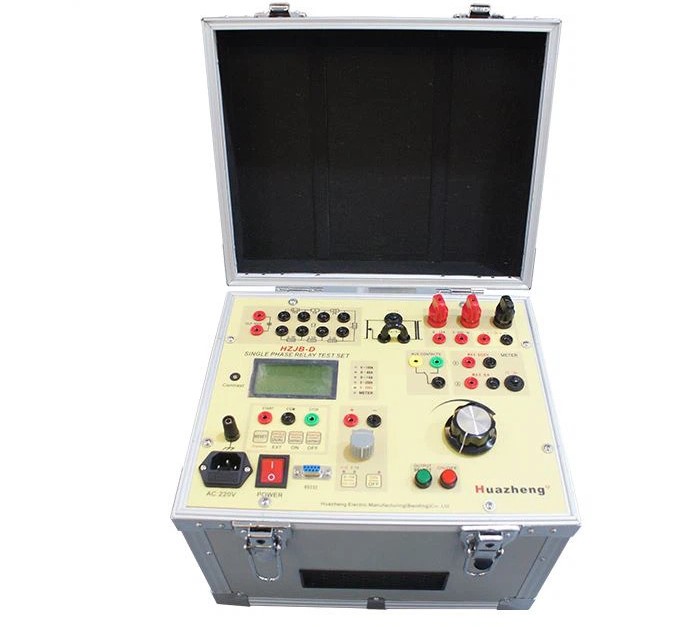

Huazheng HZJB-D Single Phase Relay Protection Tester (100A, 250VAC, 300VDC)

Rated input power: AC: 220V±10%·1000VA·50Hz

AC Output

Range(A): 0~10

No-load Voltage (Minimum)V: 90

Full-load Voltage (Minimum)V: 80

Full-load Current (Maximum)A: 10

Range(A): 0~40

No-load Voltage (Minimum)V: 25

Full-load Voltage (Minimum)V: 22

Full-load Current (Maximum)A: 40

Range(A): 0~100

No-load Voltage (Minimum)V: 10

Full-load Voltage (Minimum)V: ＜8

Full-load Current (Maximum)A: 150

Range(V): 0~250(AC)

No-load Voltage (Minimum)V: 250

Full-load Voltage (Minimum)V: 240

Full-load Current (Maximum)A: 3

Range(V): 0~300(DC)

No-load Voltage (Minimum)V: 320

Full-load Voltage (Minimum)V: 250

Full-load Current (Maximum)A: 3

DC auxiliary Output

Range V: 0~110

Voltage V: 120

Maximum current A: 0.5

Range V: 110~220

Voltage V: 220

Maximum current A: 0.5

Stopwatch:

Range: 0.0000~999999S,Resolution: 0.1mS, Accuracy: ±5

With electrical contacts and potential input, the maximum input voltage: DC 250V

Ammeter:

Range: internal: 0.000~150.0A;

External: 0.000~6.000A(AC or DC)

Accuracy: 0.5%, Measurement methods: AC: True RMS value DC: Average

Voltmeter:

Range: 0.0~600.0V(AC OR DC);

Accuracy: 0.5%, Measurement methods: AC: True RMS value DC: Average

Resistors and Capacitors:

Resistance: 0.5 ohm to 2.5k ohm

Capacitor: 10uF, maximum voltage AC 450V

Division / combination of auxiliary contacts

Maximum current: 1A, Maximum voltage: AC250V or DC120V

Using Environment: Temperature: -10 ~ 40 ℃, Relative humidity must less than 80%

Volume: 320mm×260mm×230mm

Weight: 16kg
