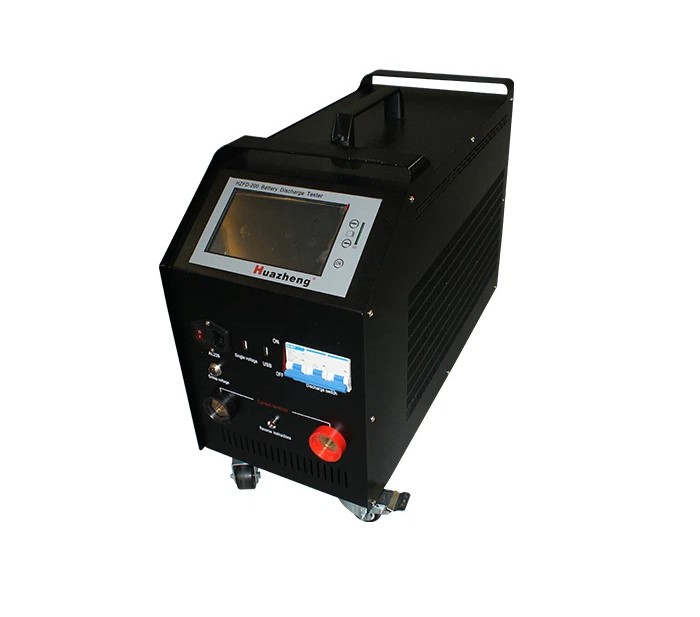

Huazheng HZFD-200 Battery Discharge Capacity Tester (2 ~ 300A)

Single voltage test type: 2V/6V/12V

Single voltage test range: 2V:0～4V 6V:0～8V 12V:0～15V

Single voltage resolution: 2V/6V:0.001V 12V:0.01V

Whole set voltage test range: 220V: 195V~270V

Whole set voltage resolution: 0.01V

Voltage test precision: 0.5%

Discharging range: 2~300A can be set continuously, over 300A we need the extra loading

Constant discharging voltage range: 220V: 195V~270V

Discharging control precision: 0.1A

Current test precision: 1%

Working voltage: AC 220V

Radiation: Air cooling

Communication: RS485 Communication and SD card communication

Display: 7” colorful LCD touch screen
