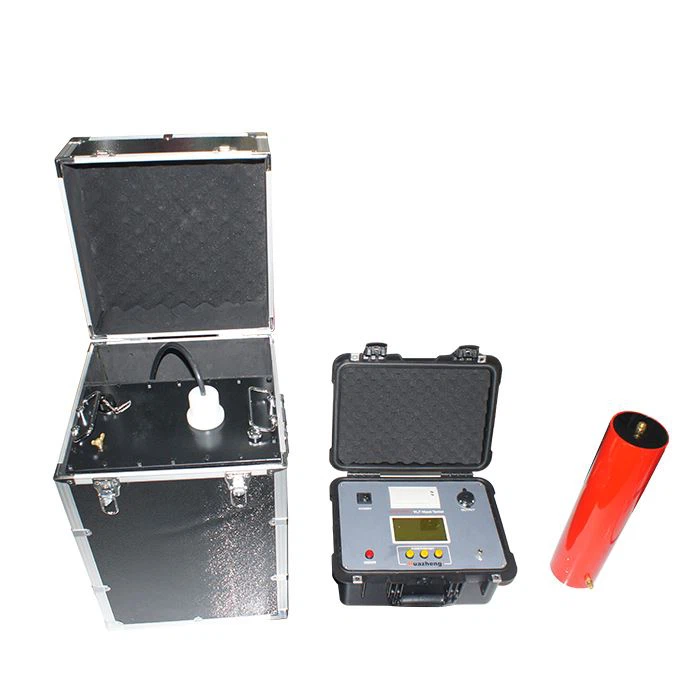

Huazheng HZDP-80 High Voltage Vlf Hipot Instrument (80kV/30mA)

1. Output voltage ratings

Rated Voltage/current: 80kV/30mA （Peak）

Load Carrying Capacity: 0.1Hz,≤0.5µF; 0.05Hz,≤1µF; 0.02Hz,≤2.5µF

Power FuseTube: 20A

Product Structure and Weight: Controller：4㎏; Booster Grade 1（30kV）：25㎏; Booster Grade 2（50kV）：50㎏

2. Output frequency: 0.1Hz, 0.05Hz, 0.02Hz

3. Measurement accuracy: 3%

4. Positive and negative voltage peak errors: ≤ 3％

5. Voltage wave form distortion: ≤ 5％

6. Use condition: indoor and outdoor; temperature: -10℃∽+40℃; Humidity: ≤ 85％RH

7. Power: AC50Hz, 220V ±5%

Packing list

1. Special high-voltage connecting cable: 1

2. Special low-voltage connecting cable: 1

3. Power line: 1

4. Ower supply fuse tubes: 10

5. Discharging rod: 1
