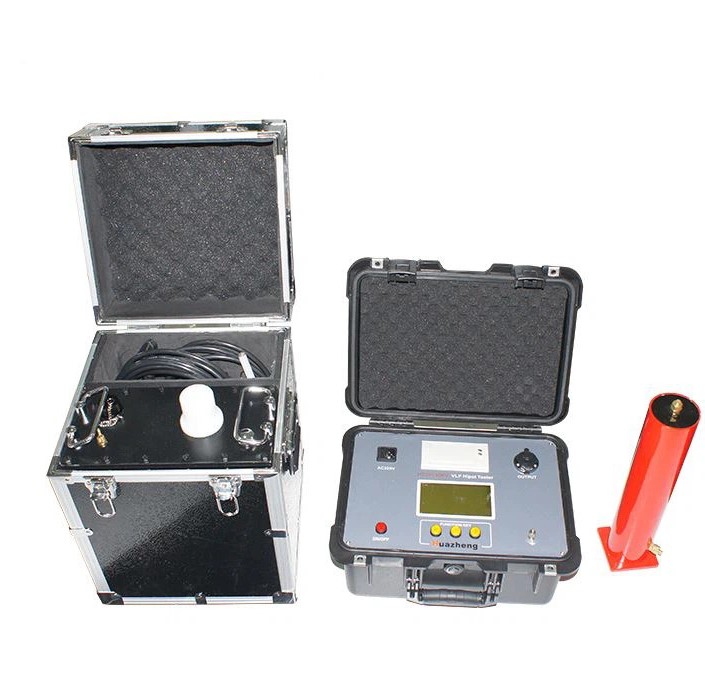

Huazheng HZDP-40 VLF Hipot Tester

- Rated Voltage: 40kV（Peak）

- Load Carrying Capacity:

0.1Hz,≤1.1µF

0.05Hz,≤2.2µF

0.02Hz,≤5.5µF

- Power FuseTube: 10A

- Product Structure: Controller Booster

- Output frequency: 0.1Hz, 0.05Hz, 0.02Hz

- Measurement accuracy: 3%

- Positive and negative voltage peak errors: ≤ 3％

- Voltage wave form distortion: ≤ 5％

- Use condition: indoor and outdoor; temperature: -10℃∽+40℃Humidity: ≤ 85％RH

- Power: AC50Hz, 220V ±5%

- Product Structure: Controller Booster

- Output frequency: 0.1Hz, 0.05Hz, 0.02Hz

- Measurement accuracy: 3%

- Positive and negative voltage peak errors: ≤ 3％

- Voltage wave form distortion: ≤ 5％

- Use condition: indoor and outdoor;

Temperature: -10℃∽+40℃

Humidity: ≤ 85％RH

- Power: AC50Hz, 220V ±5%
