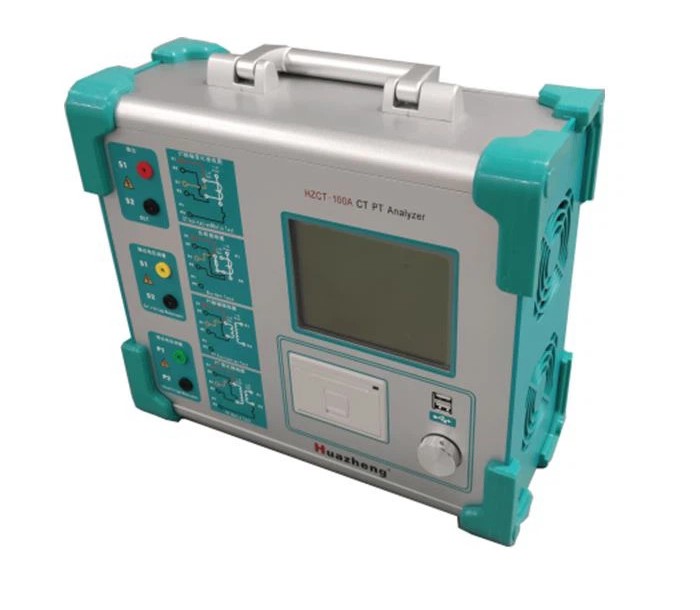

Huazheng HZCT-100A CT PT Analyzer

Test use: CT, electromagnetic PT

Output: 0~180Vrms，12Arms，36A(peak)

Voltage measurement accuracy: ±0.1%

CT transformation ratio measuring:

Range: 1~40000

Accuracy ±0.1%

PT transformation ratio measuring:

Range: 1~40000

Accuracy ±0.1%

Phase measurement:

Accuracy ±2min

Resolution 0.5min

Secondary winding resistance measurement:

Range 0~300Ω

Accuracy 0.2%±2mΩ

AC load measurement

Range 0~1000VA

Accuracy 0.2%±0.02VA

Input supply voltage AC110V-250V，50Hz/60Hz

Working environment temperature：-10℃~50℃，humidity：≤90%

Size and weight

Size：340 mm×300 mm×140mm

Weight：<7kg
