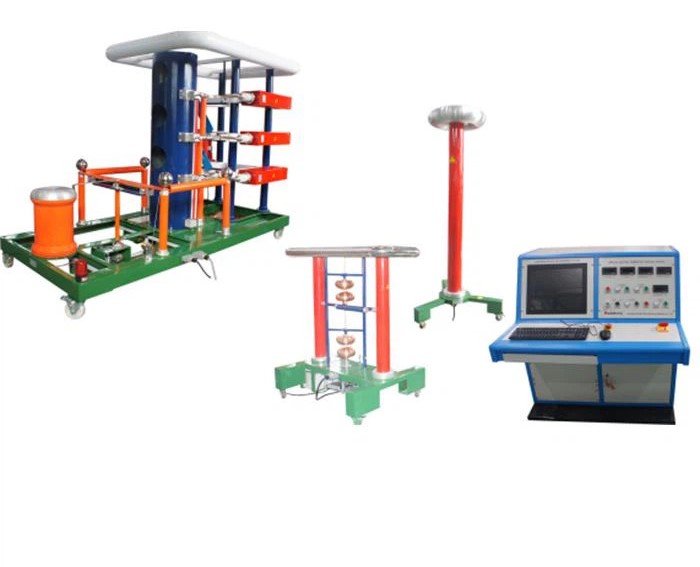

Huazheng HZCJ-400 Steep Wave Impulse Voltage Generator

1, Nominal voltage: ±400kV

2, Rated voltage: ±100kV

3. Nominal energy: 30kJ

4, The total impact capacitance: 0.375 microfarad (single pulse capacitor 1.5microfarad / 100 kV, a total of 4).

5, The total number of levels: 4

6, Standard waveform parameters:

Standard lightning impulse voltage full wave, ±1.2/50ms voltage utilization factor >85% (more than 90% when no load 400PF);

The impulse voltage waveform parameters and their deviations are in line with the requirements of the national GB311 and GB16927 standards.
