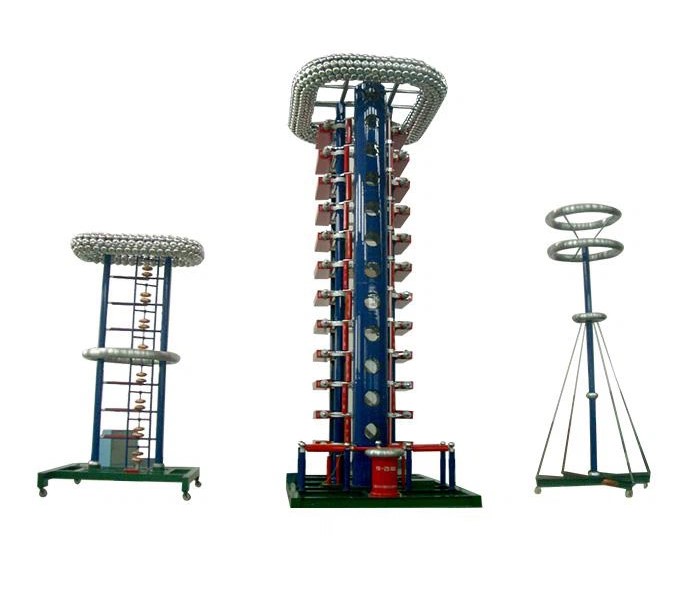

Huazheng HZCJ-3000/450 Impulse voltage generator equipment (±3000kV)

Nominal voltage: ±3000kV

Rated voltage: ±200kV

Nominal energy:450 kJ

Channel number: 2 Channel

Sampling rate: 100MS/s

Amplitude resolution: 9Bits

The amplitude error: <1%

The display screen: 15”LCD,1024×768 32-bit true color

Upper machine: The integrated workstation with Intel P4 2.4GHzprocessor as the core is the platform

Lower computer control unit: MCU processor based on 51 kernel is the main control unit

Intercept ignition control pulse delay: Accuracy of 0.1 us.

Electrical strength of isolation unit: >2500V/RMS,1min

AD sampling resolution of lower computer: 9Bit

AD sampling nonlinear error of lower computer: <1LSB

AD sampling time of lower computer: <10us

AD sampling channel of lower computer: 8

Lower computer digital channel: 32input,32output
