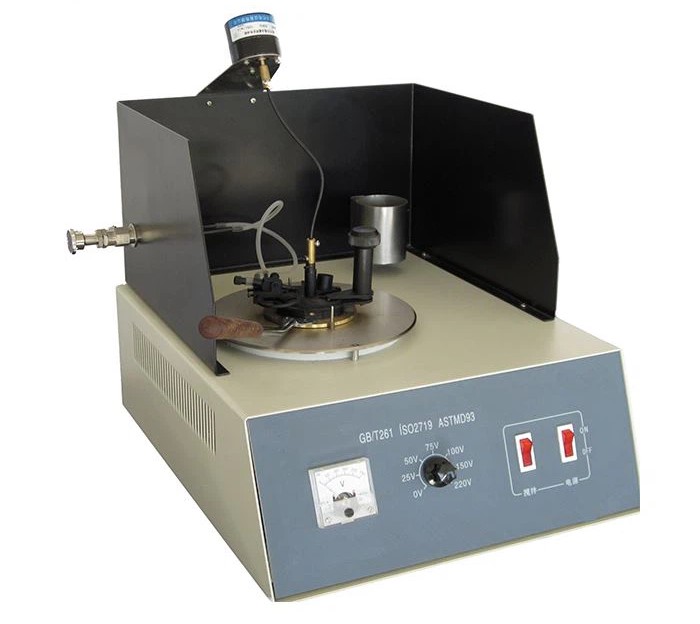

Huazheng HZBS-261 Manual Pensky-Martens Closed Cup Flash Point Meter (1～12℃/min.)

Power supply: AC 220V±10%, 50Hz.

Heating device: The heating power is continuously adjustable from 0 to 600W.

The heating rate of the sample: 1～12℃/min.

Standard oil cup:

Inner diameter: 50.7～50.8 mm.

Depth: 55.7～56.0 mm.

Depth of marking line of oil test capacity: 33.9 ~ 34.3 mm.

Test oil capacity: about 70ml.

Ignition device:

Ignition source: gas (or other civil combustible gas, thesamebelow).

The aperture of the flame lighter: 0.8 mm.

Thermometer: Bar-type mercury thermometer, which meets the requirements of theGB/T261-2008 standard.
