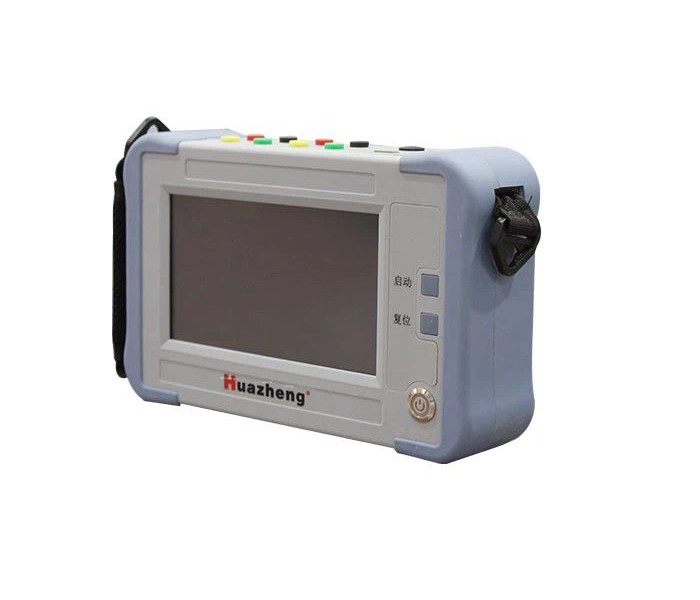

Huazheng HZBB-10A-I Portable Power Transformer Turns Ratio Measurement (0.9 ~ 1000)

Test range: 0.9~1000

Measuring accuracy:

±0.1%+2 words( 0.9-500)

±0.2% + 2 word (501-2000)

±0.5%+2 words (2001-10000)

Angle accuracy: ±0.2°

Output voltage: automatic adjustment according to the load

Resolution: minimum 0.0001 Point of view - 0.01 °

Working power supply: battery power supply

Ambient temperature: -10℃~40℃

Relative humidity: ≤85%, no dew

Dimensions: host 252*160*65(mm) Box: 425*335*210 (mm)

Weight: host 2KG Box: 8 kg

Test line length: standard length of 13 meters can be customized
