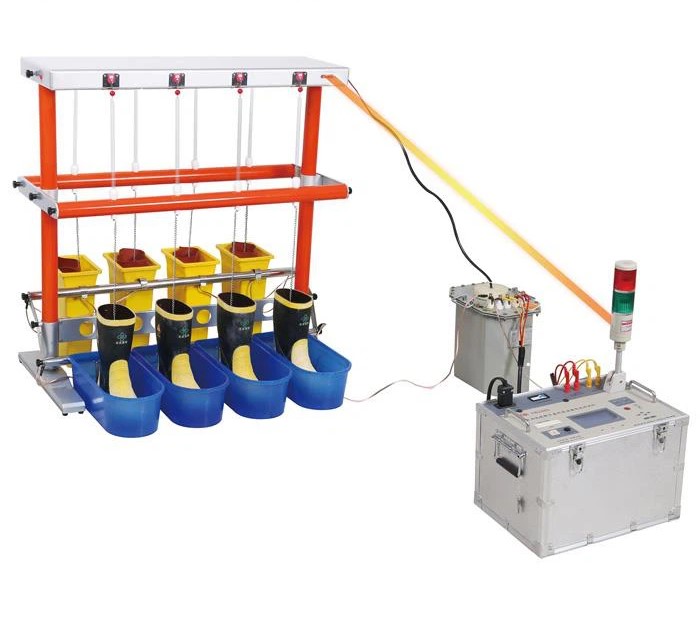

Huazheng HZAQ Glove and Boots Tester (50 kV)

Rated output voltage: 50 kV

Rated capacity: 5 kVA

Output voltage measuring range: 50.0 kV（250V）

Voltage measuring tolerance: ＜±（0.2%U+0.02%Umax）, among which U is the displayedvalue and Umax is the upper limit value.

Input current measuring range: 25.0A

Current measuring tolerance: ＜±（0.2%I+0.02%Imax）,among which I is the displayedvalue and Imax is the upper limit value. Leakage current measuring range: 25.0mA

Leakage current measuring tolerance: ±（0.5%I+2 counts）, among which I is displayed. Leakage current resolution ratio: 0.1 mA

Time limit of digital display: 10~990 S
