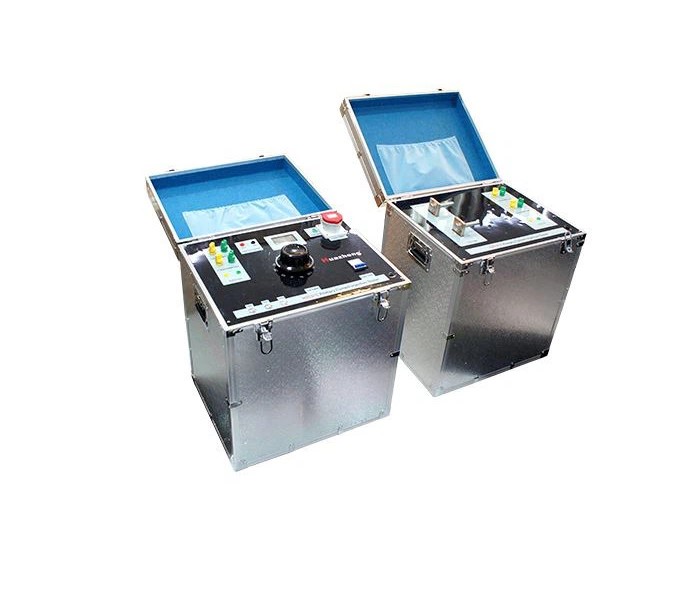

Huazheng HZ5375 Primary Current Injection Tester (5000A)

Input voltage: AC380V ±10%

Power：36KVA

Output current: AC0～5000A stepless adjustable, panel with digital display ammeter

Output voltage：6V

Output waveform: The output current is a standard sine wave with small glitches, which is better than the power system requirements index standard, and the ripple coefficient is less than 0.3%. Standard sine wave

Measurement accuracy: (Using 0.2S grade material) The actual is about 0.3; each current canbe smoothly and continuously adjusted, the accuracy is higher than 0.5. The current and voltage meter shows true and effective value, high accuracy and high stability.

Output current mode: true effective value is continuously adjustable;

Current stability: 0.2%

Structural form: Fission

Wiring method: according to requirements

Protection settings: overcurrent and overvoltage.
