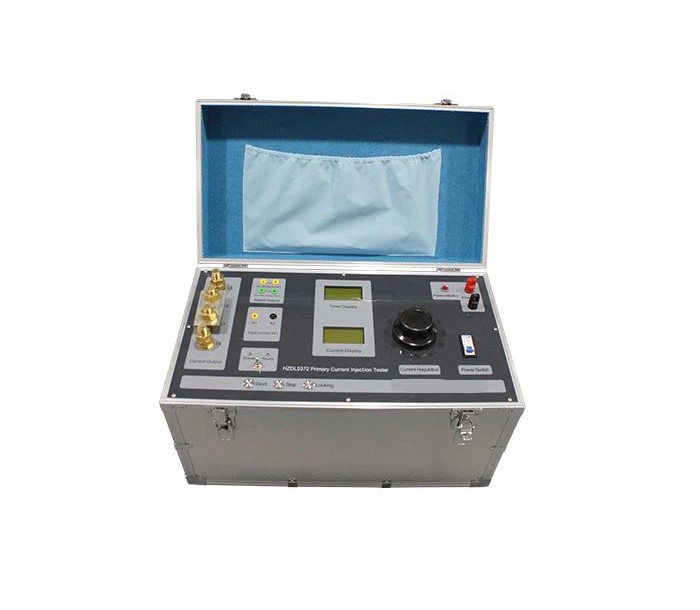

Huazheng HZ5372 Primary Current Injection Tester (2000A)

Input voltage: AC220V ±10%

Power: 5KVA

Output current: Series: AC0 ～ 1000A Parallel: AC00 ～ 2000A stepless adjustable, panel with digital display ammeter

Output voltage: >10V

Output Waveform: The output current is a standard sine wave with tiny burrs, whichisbetter than the power system requirements and standards, and the ripple coefficient isless than 0.3%. Standard sine wave.

Measurement accuracy: (using 0.2S grade material) is actually around 0.3; eachcurrent can be smoothly and continuously adjustable, and the accuracy is higher than0.5. The current and voltmeter display is a true effective value, with high accuracy and highstability.

Output current mode: the true effective value is continuously adjustable;

Current stability: 0.2%

Structure: One

Wiring mode: as required

Protection settings: overcurrent, overvoltage
