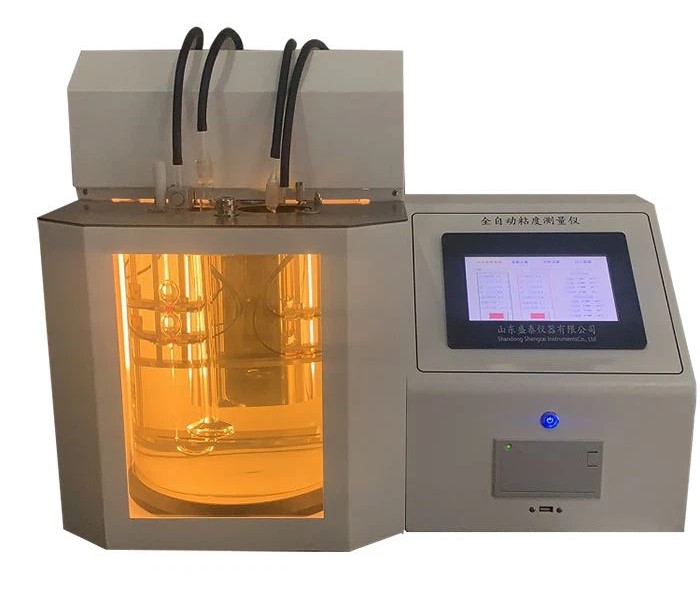

Huazheng HZ117Z Automatic Kinematic viscosity tester (1-10000mm2/s)

Large-dimensional color touch screen with a resolution of 1024*600.

Use 32-bit microprocessors as the core of control, independently developed graphical operation human aircraft interface.

The main parts and electronic components of the instrument use imported devices with good stability.

The instrument has functions such as automatic chronograph, automatic calculation, automatic printing, automatic cleaning, automatic drying and other functions.

Double -layer cylinder body, the temperature control is rapid and stable, the temperature increase rate> 5 ℃/min.

With LED soft light, it is uniform to make up for easy observation.

Have viscosity meter ginseng storage function.

Standard micro -printer automatically measure automatic thermistophay

How to use: GB/T265 ASTMD445

Temperature control range: room temperature+5 ℃ ～ 120.0 ℃ temperature control accuracy: ± 0.1 ℃ (0.01 accuracy)

Measurement range: 1-10000mm2/s

Time range: 0.0S ~ 999.9s

Number of samples: 2 groups of hairy tube viscosity meter (indicating viscosity range when ordering)

Temperature sensor: PT100 platinum resistance

Storage method: Experimental results can store 199 historical data for easy query

Results output: At the same time, it can be equipped with a U disk output function and output to the PC side for long -term storage

Output format: Result U disk output format is CSV or Excel

viscosity meter fixture: uses full 304 stainless steel, resistant to high and low temperature graphite sliding bearing device

Data memory: Micro -computer instrument memory can be expanded to 16g

Standard printing: The automatic measurement of automatic measurement of the automatic metering of the micro -printer is standard

Data protection: It has the date of setting the password. (Optional)

Remote upgrade: with TCP network transmission function, it can be remotely upgraded in the later period (optional)

Data management: connecting the Limis system (optional)

Size: 450*380*550 32kg

Packaging size: 520*480*650 39kg
