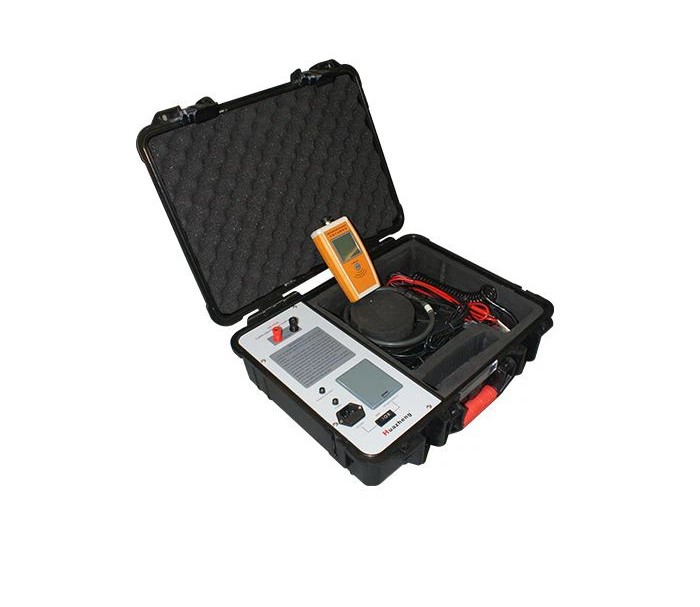

Huazheng HZ-DS4 Cable ldentification lnstrument

Launch pliers jaw: ≥130mm when closed, internal diameter ≥125mm

Receiving flexible coil: can be drawn into a straight line, can be distorted, closed into a circular inner diameter ≥135mm

Receiver power supply: two pieces of AA alkaline battery, continuous working time ≥8h

Host power supply: four pieces of AA alkaline battery, continuous working time ≥3h

Or use AC240V power supply

Identification method: waveform direction, waveform amplitude, double judgment basis

Receiving sensitivity: The resistance of the ground loop is less than 200 ohms

Weight and dimension: about 6.5kg, 47cmX38cmX15cm
