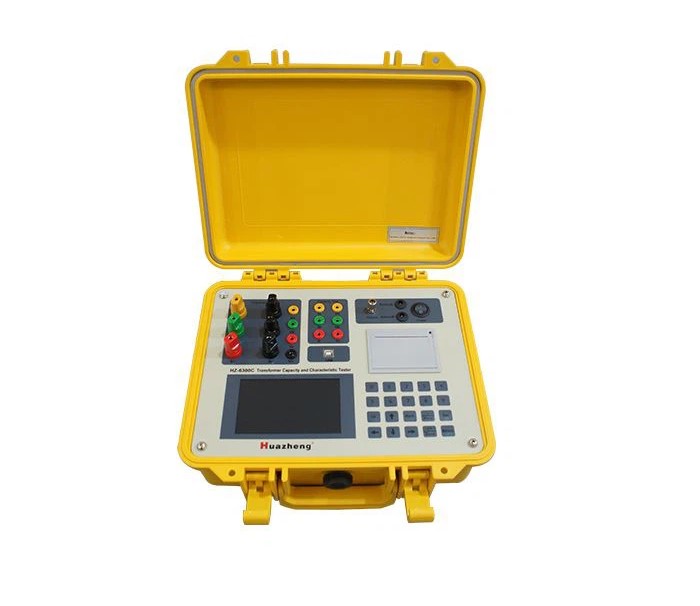

Huazheng HZ-6300C Transformer Capacity Testing Instrument
ManufacturerHuazheng (View more products from this manufacturer)
ModelHZ-6300C
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
The output range of built-in battery
Voltage：0～10V
Current：0～10A
The output range of characteristic test battery
Voltage：0～750V
Current：0～100A
Accurate
Voltage, current：±0.2%
Power：±0.5%（CosΦ>0.1）, ±1.0%（0.02<CosΦ<0.1）
Working temperature: -20℃～+60℃
The requirement of charger
Electric supply AC160V～265V
Insulation
Insulation resistance between capacity , voltage, current andcover ≥100MΩ
Power frequency is 2KV(effective value) between theinputpower and cover, testing time is 1 minute.
Volume: 32cm×25cm×12cm
Weight: 2.5KGS
