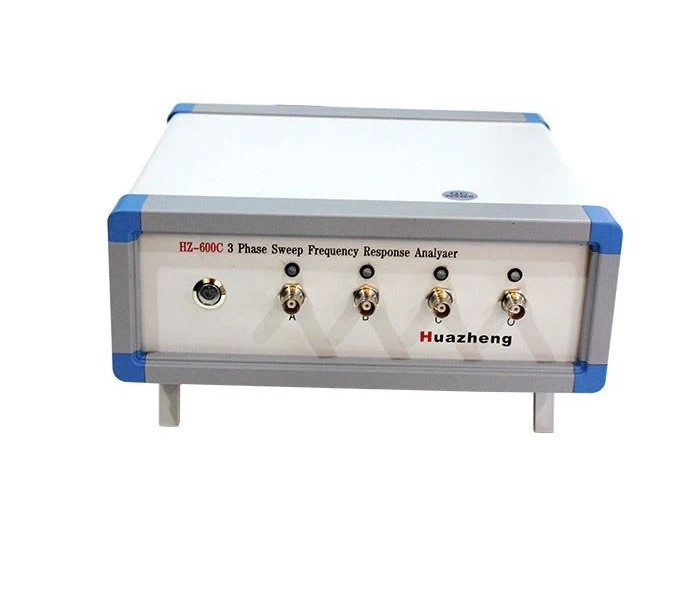

Huazheng HZ-600C Transformer Winding Deformation Tester (10Hz-2 MHz)

Measuring speed: 1 min- 3 min for single-phase winding

Output voltage: Vpp-25V, adjusting automatically in test

Output impedance: 50Ω

Input impedance: 1MΩ (the response channel is built with 50Ω matching resistance)

Frequency scan scope: 10Hz-2MHz (10Hz-30MHz, optional)

Frequency accuracy: 0.001%

Frequency scan manner: linear or logarithmic, frequency sacn interval and number of sweeppoints are freely settable

Curve display: amplitude-frequency curve (phase-frequency curve, optional)

Width of measuring dynamic range: -100dB~20dB

Supply voltage: AC100-240V 0-400Hz

Tester weight: only 3kg
