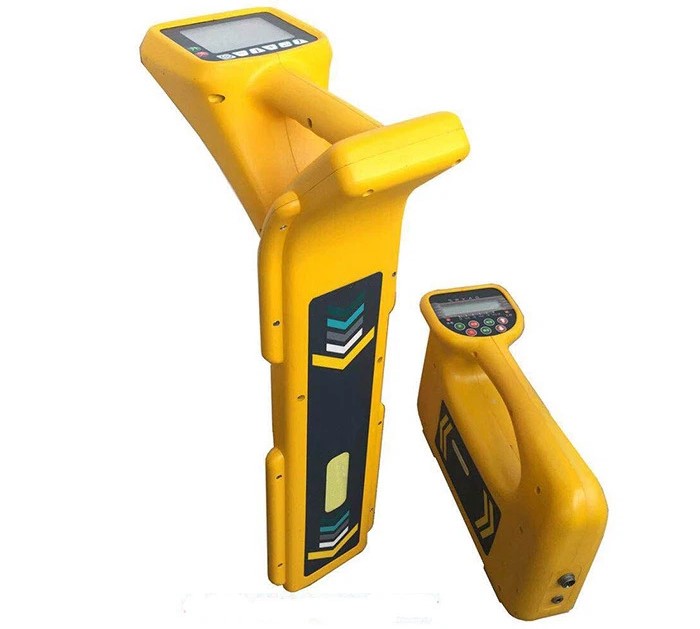

Huazheng HZ-5000E Underground Pipe And Cable Detector

Receiver

Positioning accuracy: ± 5% of depth (without interference from adjacent pipelines)

Depth measurement accuracy: ± 5% of depth (without interference from adjacent pipelines)

Current measurement accuracy: ± 5% of actual current (without interference from adjacent pipelines)

Depth measurement range: 0-10 meters

Working modes: valley mode, peak mode, wide peak mode, peak arrow mode

Working frequency: radio, 50Hz, 100Hz (CPS), 512Hz, 1KHz, 2KHz, 8KHz, 33KHz, 65KHz, 83KHz

Menu settings: Chinese and English settings menu.

Transmitters

Output power: maximum 10W

Working frequency: 512Hz, 1KHz, 2KHz, 8KHz, 33KHz, 65KHz, 83KHz

Working mode: automatic conversion of three modes: direct connection, induction, and clamp

Battery: 14.8V built-in lithium battery pack

Wireless Bluetooth GPS

Sensitivity: -165dBm

Positioning accuracy: 1m

Start time

Cold start: 48 seconds

Hot start: 8 seconds

Positioning time: 0.1 seconds

Refresh frequency: 1 second/time

Battery: 550mAh lithium battery

Working temperature: -10 ℃ -45 ℃
