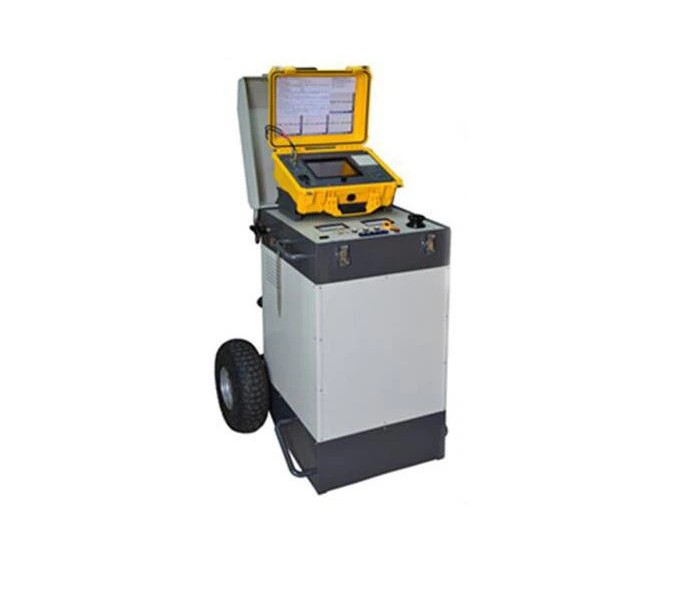

Huazheng HZ-4000T2 Cable Fault Location System

Test methods: Arc reflection method, current sampling, and DC output.

Types of sampling signals: Arc reflection method, current sampling, and low-voltage pulse.

DC voltage output:

0~32kV Negative Maximum output current: 76mA

0~16kV Negative Maximum output current: 152mA

Impact capacitor:

0~32kV 3μF Maximum output energy: 1536 joules

0~16kV 12μF Maximum output energy: 1536 joules

Ball-gap discharge: Weak electricity control. Discharge cycle can be adjusted within3-12 seconds. It has a specially designed silencer, which meets the requirement of silence when fault happened to the initial end cable.

Protection:

Zero voltage position protection: To prevent misuse, and to protect the safety of personal and the test product;

Press "off" button, and it will release the remaining charge automatically throughsafety instrument inside to ensure safety.

It is equipped with extension cable tray, which can be composed of automotive cable fault location system
