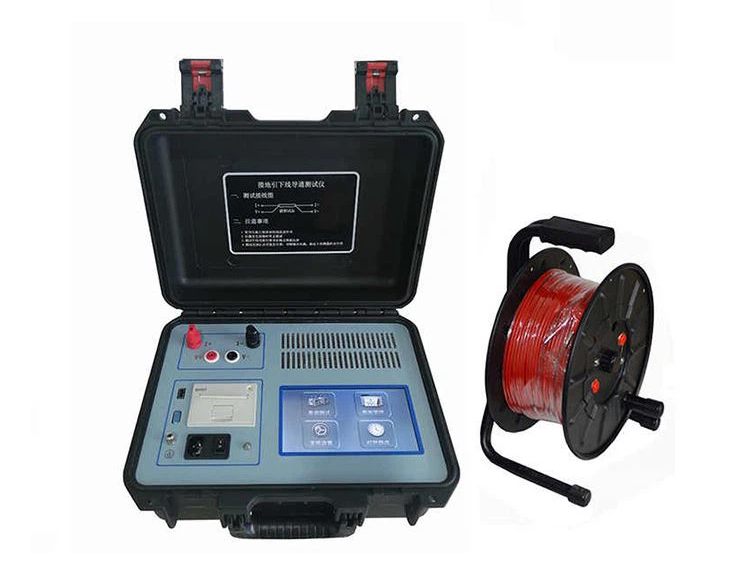

Huazheng HZ-3510 Grounding Continuity Tester (10Ω)

Test current: AUTO、1A、3A、5A、10A

Measuring range:

0.8mΩ-0.8Ω (10A)

1mΩ-2Ω (5A)

5mΩ-3Ω (3A)

10mΩ-10Ω (1A)

Min resolution: 0.1μΩ

Accuracy: ±(0.5%±2dgt)

Display: LCD

Resistance display effectivedigits are 4 digits

Data storage: 1000 groups

Working environment:

Ambient temperature: 0℃ ～ 40℃

Relative humidity: <90%RH, no condensation

Power supply: Built-in lithium battery AC 220V±10V，50Hz±1 Hz, Fuse 2A

Max power consumption: 100W

Dimensions: 360*290*170 （mm）

Weight Instrument：4.85Kg Wire box: 9.5Kg

Manual
