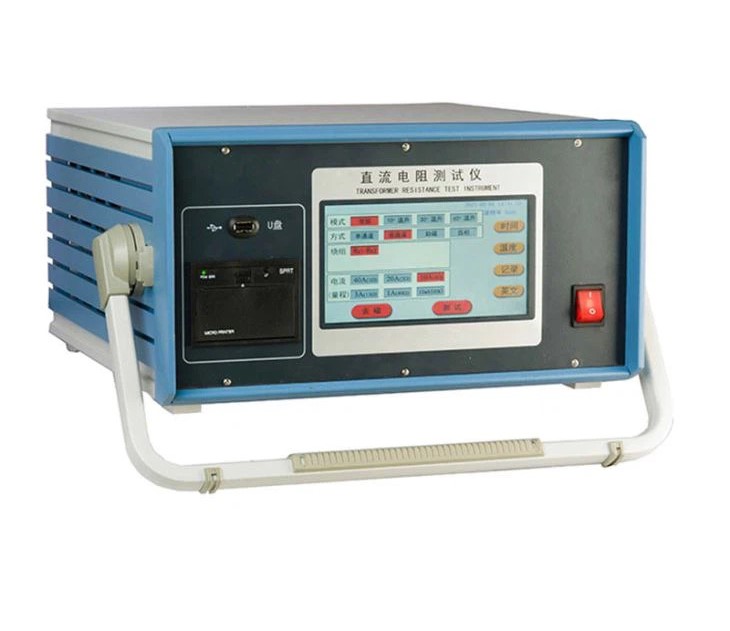

Huazheng HZ-3220S Transformer DC Resistance Tester (20kΩ)
ManufacturerHuazheng (View more products from this manufacturer)
ModelHZ-3220S
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Output current： <15mA、1A、2.5A、5A、10A、20A、15mA+1A、15mA+2.5A、15mA+5A、15mA+10A
Range：200μΩ～2Ω （20A）
400μΩ～4Ω （10A）
800μΩ～8Ω （5A）
2mΩ～16Ω （2.5A）
4mΩ～40Ω （1A）
10Ω～20kΩ （<15mA）
Accuracy：±(0.2%+2 words)
Resolution：0.1μΩ
Working temperature：0～40℃
Environmental humidity: ≤90%RH, no condensation
Power supply：AC220V±10%，50HZ±1HZ
Dimensions：440mm*240mm*390mm
Net weight：15KG
