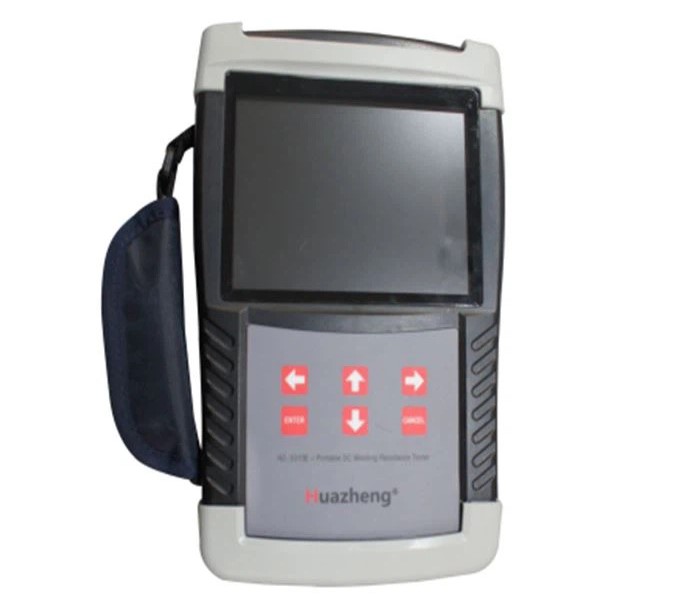

Huazheng HZ-3110E-I Portable DC Winding Resistance Tester (500µΩ ～ 200mΩ)

DC resistance test

Current gear: 10A

Measuring range: 500µΩ ～ 200mΩ

Current gear: 5A

Measuring range: 10mΩ ～ 1Ω

Current gear: 1A

Measuring range: 100mΩ ～ 20Ω

Current gear: 100mA

Measuring range: 10Ω ～200Ω

Current gear: 10mA

Measuring range: 50Ω ～2kΩ

Current gear: 1mA

Measuring range: 500Ω ～50kΩ

Technical index

Accuracy: 士(Reading X 0.2%+2 words)

Maximum resolution: 0.1µΩ

Conditions of use and appearance

Working power supply: Built in lithium battery or external charger, charger input 100 ～240VAC, 50HZ/60HZ

Charging voltage: 16.8V

Charging current: ≤3A

Charging time: About 4 hr

Use time: More than 8 hr

Host weight: 1.6 kg (Test line is not included)

Dimension: 246mm(L)X 156mm(W) X62mm(H)

Use of temperature: -10℃～50℃

Relative humidity: ≤90%，No dew
