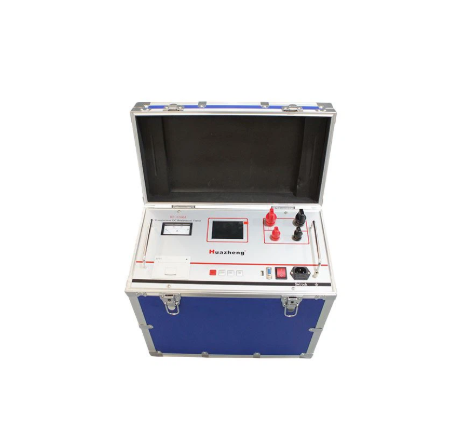

Huazheng HZ-3100A Transformer DC Resistance Tester (4Ω)
ManufacturerHuazheng (View more products from this manufacturer)
ModelHZ-3100A
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Test current: 5A、10A、20A 、50A、100A
Measuring range:
50μΩ～100mΩ （100A）
100μΩ～400mΩ （50A）
200μΩ～1Ω （20A）
500μΩ～2Ω （10A）
1mΩ～4Ω （5A）
Min resolution: 0.1μΩ
Accuracy: ±(0.2%+2 reading)
Display: LCD Monitor
Resistance display effectivedigits are 4 digits
Data storage: 1000 sets
Working environment
Ambient temperature: 0℃～40℃
Relative humidity: <90%RH No condensation
Power supply: AC 220V±10V，50Hz±1 Hz Insurance tube 10A
Max power consumption: 1000W
Overall dimensions: 440×245×395（mm）
Weight instrument: 19.8Kg
Wire box: 7.5Kg
